Victron Energy SPM040203603

Victron Energy SPM040203603

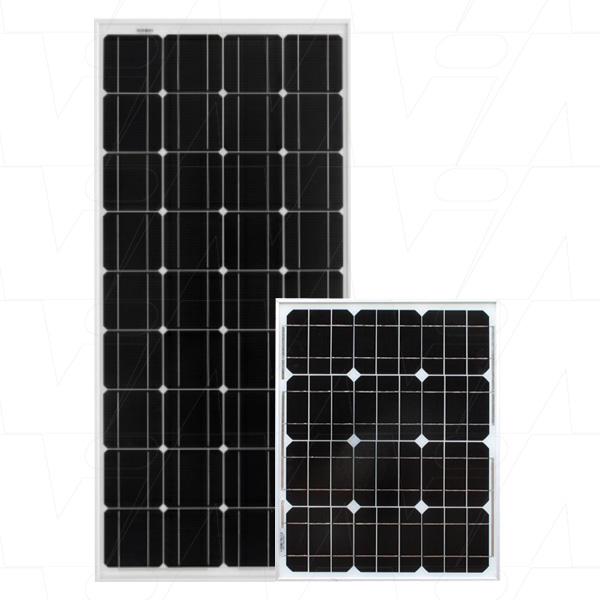

Victron BlueSolar 12V 20W 36 cells 1.09A IP65 Junction Box (PV-LH0802) Monocrystalline Solar Panel 4C SPM040203603

BlueSolar Monocrystalline Panels

  • Low voltage-temperature coefficient enhances high-temperature operation.
  • Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
  • 25-Year limited warranty on power output and performance.
  • 5-Year limited warranty on materials and workmanship.
  • Sealed, waterproof, multi-functional junction box gives high level of safety.
  • High performance bypass diodes minimize the power drop caused by shade.
  • Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
  • A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
  • Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.

Important Information:

This solar panel does not come supplied with cabling.

View the range of Victron Energy Cables and Accessories


Selling Unit EACH
Model No SPM040203603
Brand Victron Energy brand logo
Original Brand Victron Energy SPM040203603
Description Victron BlueSolar 12V 20W 36 cells 1.09A IP65 Junction Box (PV-LH0802) Monocrystalline Solar Panel 4C SPM040203603
Voltage 12V
Size 20W
Width 275mm
Height 25mm
Length / Breadth / Depth 450mm
Weight 1.3kg
Categories Power Products & Accessories
BlueSolar Range
Solar
Solar Panels
Monocrystalline Solar Panels

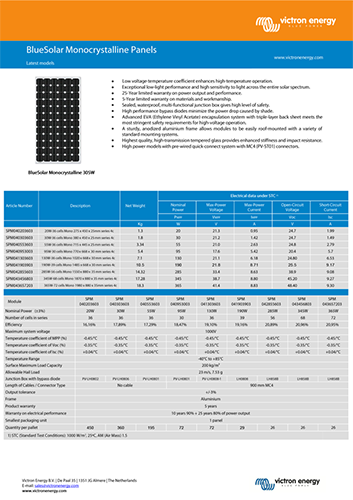

Data Sheet Datasheet PDF Thumbnail icon

Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account

Solar panel freight

Solar Panel Freight

*Please note: Master Instruments takes great care in ensuring all products are delivered in the best condition possible.

With Solar Panels being considered bulky freight and logistically fragile, additional freight charges will apply.

Should you require a quote, please contact our friendly Sales team.
