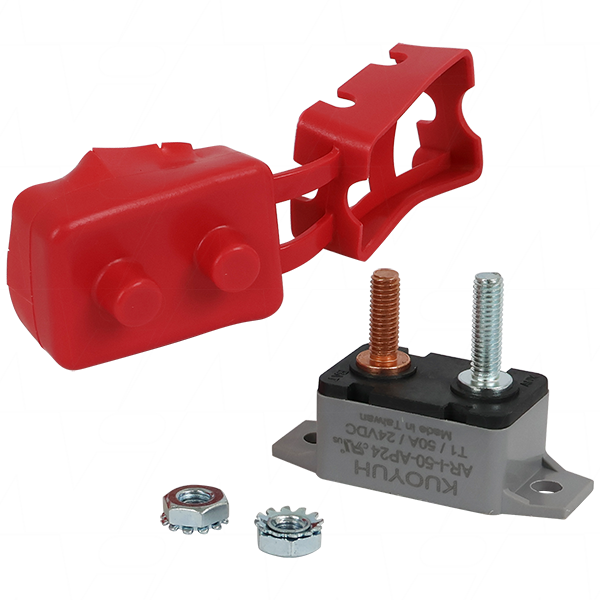

Kuoyuh KAR-1-50-AP24-110
Auto-Reset Circuit Breaker 50A with Red Cover
KUOYUH AR Series Short Stop Circuit Breaker, also known as a heavy-duty circuit breaker or box-style circuit breaker, protects electrical circuits in demanding environments.
Designed as a single-pole, Auto-reset thermal circuit protector, suitable for a wide range of applications, including marine anchor winches, RVs, winches, tractors, jump starters, trolling motors, and pressure washers.
Features:
- Thermal Auto-Reset protection - automatically resets after overload with no fuse replacement required
- 50A rated to handle high draw circuits such as power inverters and winches
- 12V & 24V suitable for commercial & recreation applications such as Caravans, Boats and 4x4's
- Protective cover to prevent short circuiting and corrosion
Whether you're looking for a surface mount circuit breaker or a more traditional box-style breaker, the AR series provides the safety and performance required for heavy-duty applications.
Specifications
| Model | KAR-1-50-AP24-110 |
|---|---|
| Current Rating Range | 50A |
| Input Voltage Rating | 12/24 VDC |
| Contact Endurance |
12/24 VDC X150% of rated current >500 cycles 12/24 VDC X200% of rated current >200 cycles |
| Insulation Resistance | 100mΩ (DC 500V) |
| Dielectric Strength | 1500VAC / Min |
| Breakering Capacity | 4 times rated currentK |
| Automotive Type | Auto-Reset 12/24VDC |
| Operating Temp Range | -10°C to +60°C |
| Terminal Type | #10-32 thread |
| Terminal Torque (Nm) | 3.0Nm Max |
| Selling Unit | EACH |
|---|---|
| Model No | KAR-1-50-AP24-110 |
| Brand |
|
| Description | Auto-Reset Circuit Breaker 50A with Red Cover |
| Application | Solar, Automation, Control, Telecommunications, DC circuit applications |
| Size | 50A |
| Width | 50.8mm |
| Height | 35mm |
| Length / Breadth / Depth | 20.6mm |
| Categories |
DC Circuit Breakers Kuoyuh |
