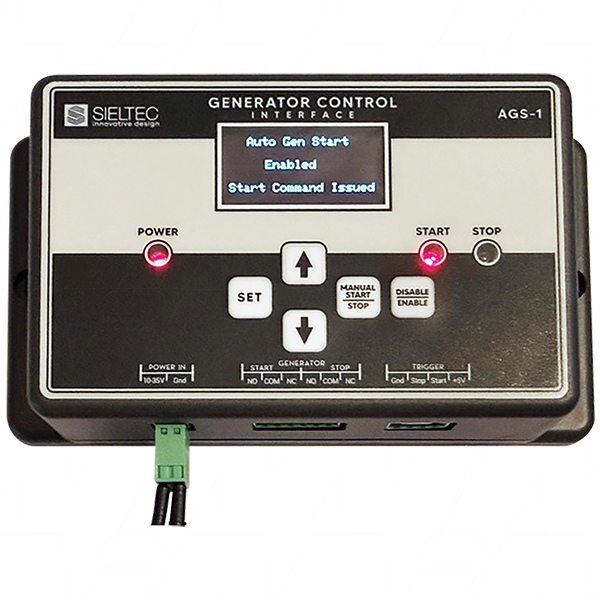

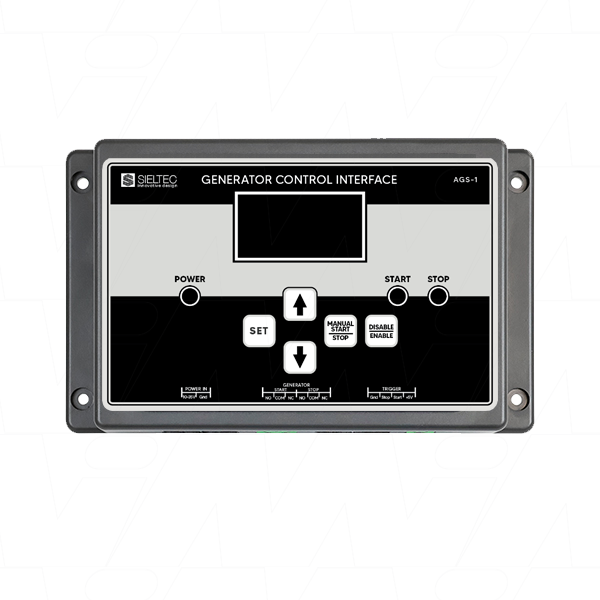

Sieltec VG-AGS-1

The Sieltec VG-AGS-1 is a programmable generator start interface that sits between a Victron CerboGX (or similar battery management controller) and a marine or stationary generator.

It converts the single relay contact closure output of the CerboGX into the correctly timed start and stop pulses required by the generator — removing the need for discrete timer relays and the associated custom wiring that would otherwise be required for each installation.

The device was developed specifically to solve a recurring installation problem: connecting the CerboGX's relay output to generators such as the Cummins Onan and Kohler marine gensets, which require distinct timed pulses rather than a simple sustained contact closure.

The VG-AGS-1 packages that function cleanly into a compact, panel-mount enclosure with a simple front-panel programming interface, a manual start/stop test function, and a dedicated disable button — ideal for vessels being lifted from the water where an inadvertent autostart of a water-cooled generator must be prevented.

*Suitable for use with the 12V and 24V systems

Key Features:

• Converts CerboGX relay contact closure to timed start and stop pulses for compatible generators
• Fully programmable start pulse duration, stop pulse duration, and inter-pulse separation via front-panel buttons and OLED display
• Supports generators with separate start/stop circuits or shared single-circuit start/stop (join start and stop outputs)
• Built-in manual Start and Stop buttons — allows installer to verify generator wiring before connecting the CerboGX
• Dedicated Disable/Enable button — disables autostart function (e.g. vessel out of water)
• Reverse polarity protected power input
• OLED display with auto-dim (after 1 hour inactivity); reactivates on any button press or trigger

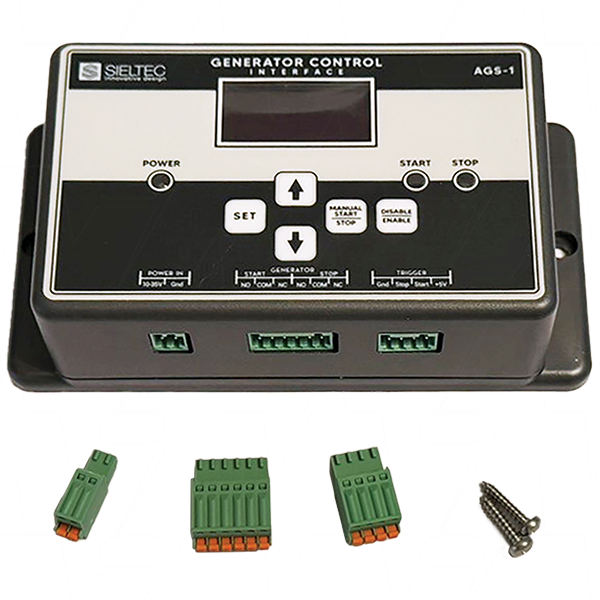

• Pluggable spring push-button connectors (Phoenix 2.5 mm pitch) — no tools required for field wiring
• High electrical noise immunity — unshielded multicore cable is sufficient
• Flame-resistant ABS enclosure, UL94-V0

Please Note: The AGS-1 does not detect whether the generator has successfully started, does not retry on a failed start, and does not monitor generator alarms. It is a pulse interface only.

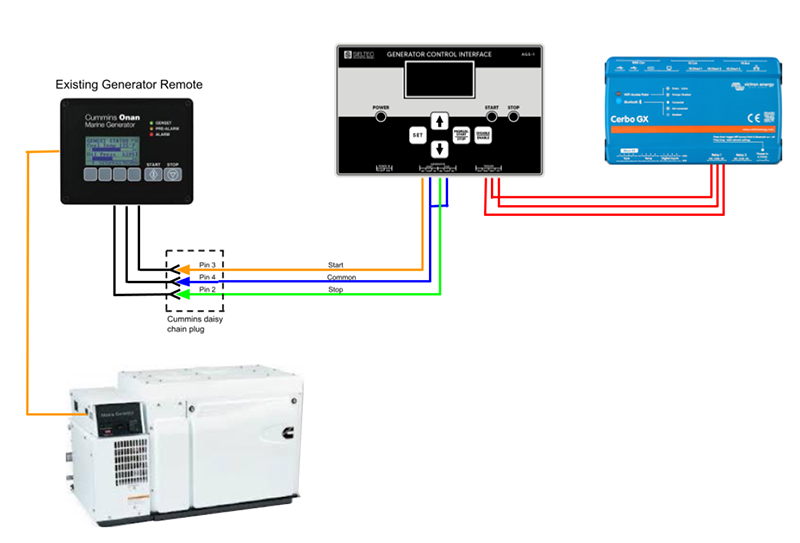

Typical Schematic

The VG-1BM can be used in conjunction with a Victron Energy GX device to also provide additional information to those systems.
