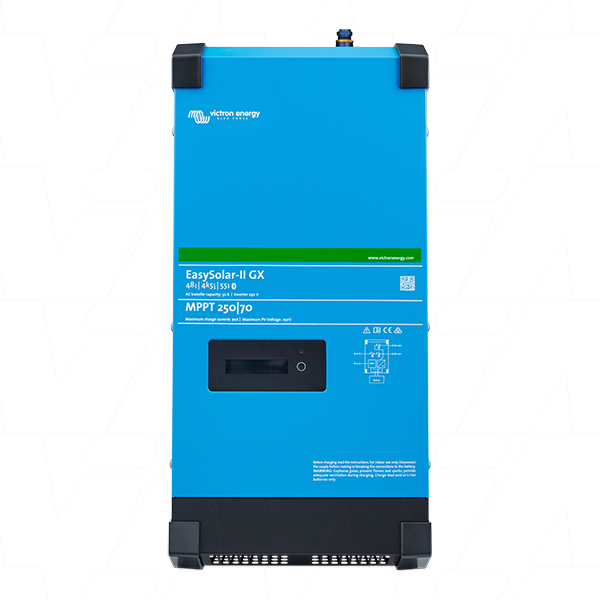

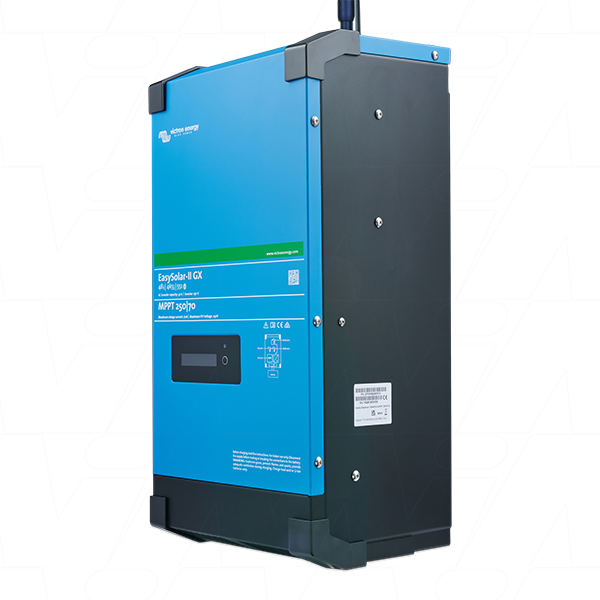

Victron Energy VEICESII-48/4K5/55-32
Victron Energy PMP482307010 EasySolar Inverter & SLA Charger 48V 3000VA 35A
All-in-one solar power solution
The Victron EasySolar-II GX integrates the following elements:
- A MultiPlus-II inverter/charger
- A SmartSolar MPPT -Tr solar charge controller
- A GX device with a 2 x 16 character display.
These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.
Display and WiFi
The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other wifi enabled device. In addition, wifi can be used to set up the system and to change settings.
Solar charge controller
The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger. The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.
GX device
The integrated GX device includes:
- A VE.Can interface. This can be used to connect to Victron VE.Can devices (e.g. VE.Can MPPTs), or the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Li-ion Battery
- A USB port
- A Ethernet port
- A VE.Direct port
The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.
This package comes supplied with:
- 48V 3000VA 35A Inverter Charger
- SmartSolar MPPT 250/70-Tr
- Colour Control GX Systems Controller with GUI
Related Products
| Selling Unit | EACH |
|---|---|
| Model No | VEICESII-48/4K5/55-32 |
| Brand |
|
| Original Brand | Victron Energy PMP482457010 |
| Description | Victron Energy PMP482307010 EasySolar Inverter & SLA Charger 48V 3000VA 35A |
| Chemistry | Lithium Iron Phosphate / Lead Acid (LiFePO4/SLA) |
| Voltage | 48V |
| Size | 35A |
| Width | 275mm |
| Height | 591mm |
| Length / Breadth / Depth | 254mm |
| Weight | 27kg |
| Categories |
Power Products & Accessories Inverter Chargers Hybrid Inverter Chargers MultiGrid & EasySolar Ranges |

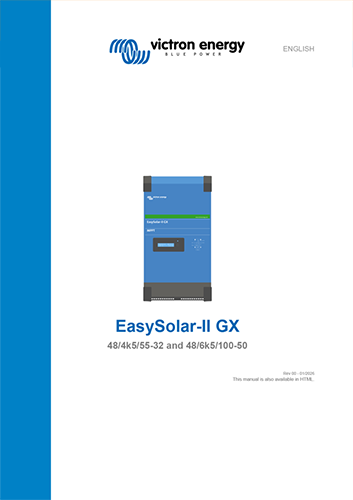

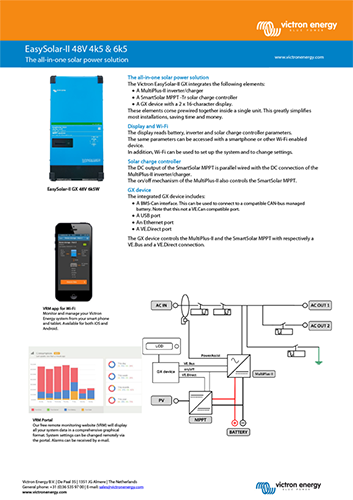

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
INSTALLATION TO AUSTRALIAN STANDARDS REQUIRED
VictronConnect Compatible
VictronConnect lets you get live status information and configure any Victron Energy products via either Bluetooth or direct cable connection. Connect to Bluetooth equipped products, or non-Bluetooth equipped products using VE.Direct Bluetooth Smart Dongle. Connect directly to equipment using the VE.Direct to USB Interface (USB Type-A) or VE.Direct to Type C Interface (USB Type-C) cables.
Find out more about VictronConnect here, or download the App via these links. Click here to download the VictronConnect Manual.
