Headway HWF40160HC

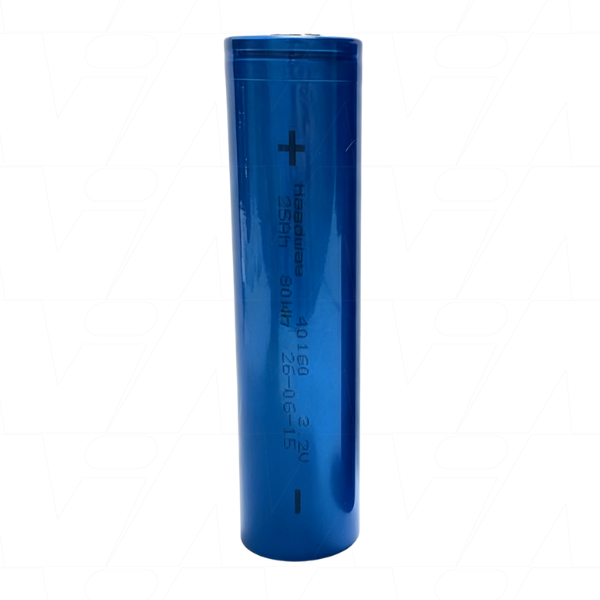

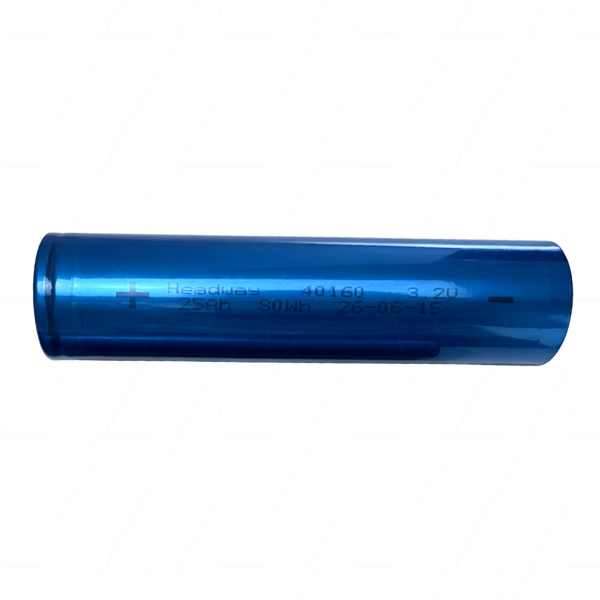

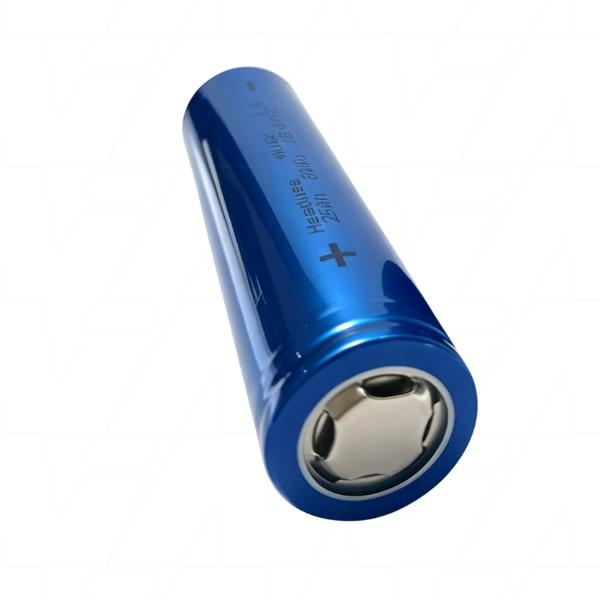

High Capacity 3.2V 80Wh HWF40160HC size 25.0Ah cylindrical Lithium Iron Phosphate Rechargeable Cell

High Capacity 3.2V 25Ah 80Wh Flat-top 40160 size Lithium Iron Phosphate rechargeable cell for use in battery pack manufacturing.

Features:

3C Max continuous discharge rate
6C Instant Max discharge pulse current
High cyclie life - 2000+ cycles

Specifications
Nominal Voltage	3.2V
Nominal Capacity	25Ah @ 0.5C
Minimum Capacity	24Ah @ 0.5C
Charging Current	Standard charging Mode: 0.5C CC/CV
	Standard charging current: 0.5C
	Max. continuous charging current: 1C (20~40℃)
	Standard EOC Voltage: 3.65V
Discharging Current	Standard discharging current: 0.5C
	Max. continuous discharging current: 2C
	Max. pulse discharging current: 6C (10 Seconds)
Temperature	Charge: 0℃～60℃
Temperature	Discharge: -20℃～60℃
Cycle Life	≥2000 cycles 80%SOH

Battery Assembly Accessories

Check out the range of Battery Holders and Busbars suitable for use with Headway cells

Selling Unit	EACH
Model No	HWF40160HC
Brand
Original Brand	Headway
Description	High Capacity 3.2V 80Wh HWF40160HC size 25.0Ah cylindrical Lithium Iron Phosphate Rechargeable Cell
Application	Pack assembly & manufacture, EV Batteries
Chemistry	Lithium Iron Phosphate
Voltage	3.2V
Watt Hour	80Wh
Nominal Capacity	25Ah
Size	40160
Width	41mm
Height	160mm
Categories	Lithium Ion Batteries Lithium Iron Phosphate Batteries Lithium Iron Phosphate Cells Headway Headway LiFePO4 Cells

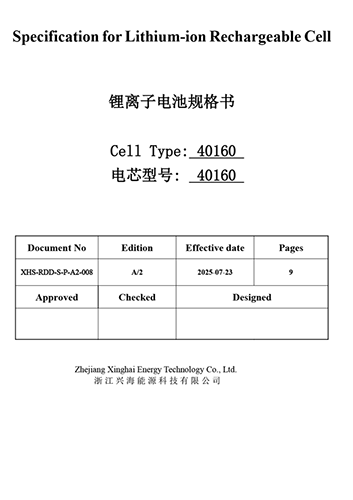

Data Sheet

Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account

Important Information Regarding Rechargeable Lithium Cells - LITHIUM ION (LiIon) & LITHIUM IRON PHOSPHATE (LiFePO4)

Single unprotected cells are not available to customers. For safety information please read the Lithium Battery Safety document.
PLEASE NOTE: Under special circumstances, only to pre-qualified customers approved by MI management, cells or packs may be provided without a protection circuit for prototyping or testing purposes. All lithium rechargeable cells/packs supplied by Mi Battery Engineering without a PCM will require a duly signed Product Indemnity Waiver (PIW) Click here to download
Do not attempt to charge these batteries using chargers for nickel based batteries or any charger not specifically designed for rechargeable lithium technology.
This cell is manufactured for use in a battery pack assembly. It is not intended for use without a protection circuit. For equipment designed to use individual cells a protection circuit can be incorporated.
Single unprotected cells are available to recognised customers. An indemnity waiver may be required for supply to take place.
Lithium ion cells can be assembled into single or multi-cell battery packs by authorised pack assembly centres. Mi Battery Engineering can also provide advice and components for intelligent Battery Management System's (BMS) additional to or incorporating PCM's. It's recommended that battery packs especially those featuring complex series/parallel cell assemblies incorporate a BMS in their construction. For battery pack design enquiries please contact us with your requirements.

SHIPPING RESTRICTIONS APPLY

Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.

NON DG UN3480 LITHIUM ION BATTERIES - Contains cells/batteries exempted from ADG 7.7 & IMDG Code 2020 using Special Provision 188.

Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
