VoltGo VLEG-BMV2 KIT

Range - 9.0-80VDC

The VLEG-BMV2 Kit is a panel mounted battery status monitor/display for use with VoltGo's golf cart battery the VLEG1638C & VLEG3276C.

This handy monitor allows for simple battery status monitoring to ensure you're not stranded on the golf course.

The colour TFT display shows:

• Battery Voltage
• State of Charge percentage featuring coloured percentage ranges (see below)
• Estimated remaining run time in hours.

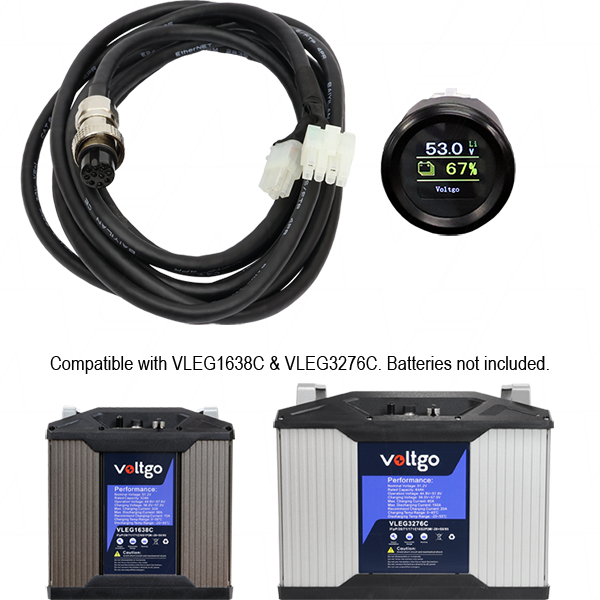

*Important: The VLEG BMV2 KIT is only compatible with the VLEG1638C & VLEG3276C Golf Cart battery.

*INSTALLERS PLEASE NOTE: You must connect the VLEG-BMV2 to the battery com port before then turning battery on, otherwise it reads as 0% capacity with no voltage or communications.

71% - 100% SOC - GREEN | 21% - 70% SOC - YELLOW | 0% - 20% SOC - RED

Warnings:

The VLEG-BMV2 Kit also highlights if it detects a communications fault, and displays the BMS fault code to assist in rectifying the issue.

IP Rated:

The monitor face is IP67 rated with the underside IP54 rated.

CAN Connection:

CAN protocols and pin layouts are available in the manual.

Built-in Power-Save Timer

The monitor's display is designed to work with your cart, not drain it. During active charging or discharging, the screen stays on continuously, giving you a real-time view of your battery's state. Once the cart is idle — no charge or discharge current detected — the display automatically turns off after 10 minutes to eliminate unnecessary power draw and protect your battery's standby charge. As soon as activity resumes, the display wakes instantly, so you're never left guessing about your battery's status.

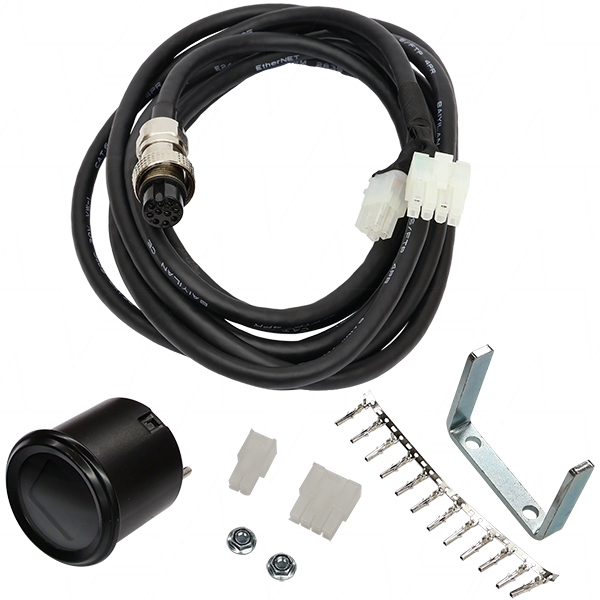

Inclusions:

• Battery monitor & mounting hardware
• 3.1 metre cable kit to attach to batteries
