Enepower Stand Alone Power Systems

Taking the design & installation hassles out of Energy Storage systems is a key driver behind Enepower's stand-alone power system range.

Providing pre-wired & factory tested "install-ready" systems saves the costs associated with system design, component procurement and most importantly on-site installation time.

Introducing the 1st Enepower constructed All-in-one Solution, from the Engineers at Master Instruments

The Enepower EPESS-EBC25H-48-5-14.4-AIR is a closed loop / managed all-in-one 48 volt, 14.4kWh battery system featuring a 5kVA inverter charger capable of handling up to a 4kW solar array; and suitable for use in Off-Grid installations, Hybrid Grid-connected systems or Back-up Solar Applications

Enepower SAPS offer:

• Pre-wired & Factory Tested prior to dispatch
• Industry renowned Pylontech LFP Battery storage
• Intelligent monitoring locally through Bluetooth, and remotely via the Victron Energy's VRM platform
• Advanced power conversion efficiencies through the Victorn Energy components
• Comprehensive safety with sized fusing and thermal control to ensure long term performance

Designed to AS/NZS5139 and housed within the latest Enepower IP55 rated EBC25H battery & PCE cabinet, this system features a Air-conditioned battery compartment to ensure batteries are kept at optimum temperature to provide plenty of available capacity, and to extend the service life of your installation. The twin fan cooled PCE compartment neatly houses the system infrastructure to easily integrate into your application.

Utilising components from the world's leading renewable energy manufacturers, this Enepower system comes fully pre-wired & factory tested before dispatch to ensure a smooth installation. With on-going monitoring and technical support via Victron Energy's VRM platform, the MI Engineers can assist with system adjustments, fault diagnosis and EOL projections.

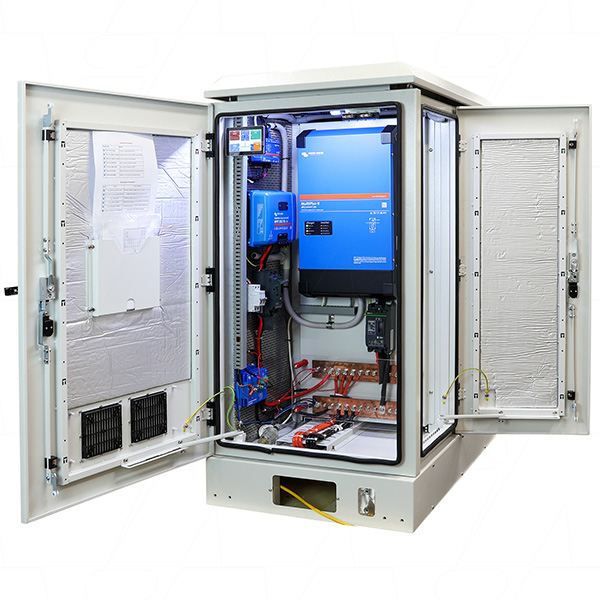

The EPESS-EBC25H-48-5-14.4-AIR has been constructed using:

• Pylontech US5000B x 3 modules
• Victron Energy 48/5000/70-50 Multiplus-II Inverter Charger
• Victron Energy Smart Solar 250/70 MPPT
• Victron Energy Cerbo MK2 GX with Touch 50 GUI
• Victron Energy Smart Battery Protect
• Noark MCCB and MCB's
• Housed within the EBC25H-ODAIR - A/C & Fan Cooled & insulated cabinet



As with ALL Enepower products, system components can be tailored to suit your specific usage, size, performance or budgetary requirements. For example, the Enepower EPESS-EBC25H-48-5-14.4-AIR can be modified to:

• Increase battery storage (up to 25.6kWH)
• Adjusted to suit 3RU Modules
• The Victron Inverter Charger swapped for a grid interactive model such as the Noark Hybrid range
• Cabinet swapped out for the non-A/C Cooled version





To find out more about the Enepower SAPS, please follow the links below or contact us to explore the options.
