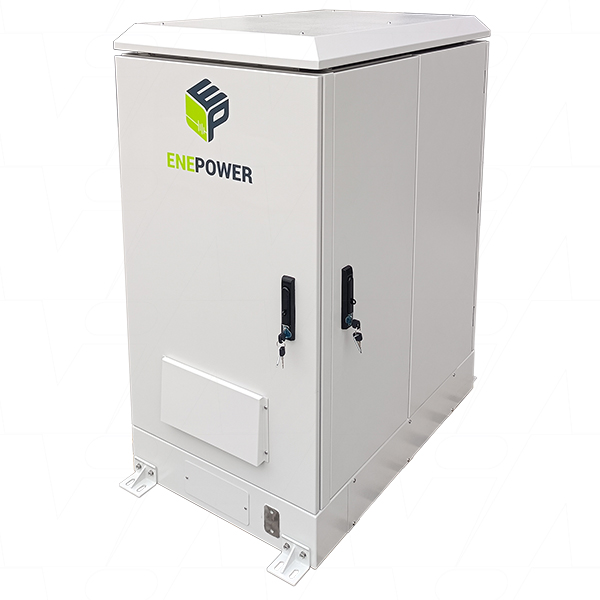

Enepower EPESS-EBC25H-48-5-14.4-AIR
Install Ready 48V 14.4kWh 5KVA Stand Alone Power System A/C Cooled
Enepower Pre-wired Stand Alone Power System (SAPS) with built in A/C cooling for use in off-grid, grid connected and backup solar applications.
Install Ready to reduce your installation time and costs
This SAPS offers a 48V managed system, with 14.4kWh of battery storage (13.68kWh Usable) with a 5000VA Inverter Charger and is capable of handling up to a 4kW solar panel array.
Featuring:
- Closed Loop / Managed All-in-one battery system for efficient system performance and extended service life
- IP55 rated cabinet with A/C and Fan cooling – suitable for Arid environments
- Australian design & constructed using components from the world’s best manufacturers
- Design to be safe with quality BMS, Thermal protection, fusing and circuit breakers
- Pre-wired to reduce installation time and associated costs
- Easily expandable up to 25.6kWh of battery storage
- Fully tailorable to your specific requirements and power usage
- Full remote monitoring and support, by Master Instruments, via Victron Energy VRM
- Factory tested and pre-programmed prior to dispatch
Using only quality components, from the world's leading renewable energy specialist manufacturers, components come with substantial warranty periods for added peace of mind.
Enepower Stand Alone Power Systems
Enepower products have been designed, constructed and supported by Master Instruments - Australian owned & operated battery specialists for nearly 85 years.
All Enepower products can be modified and tailored to your specific usage, size, performance and budgetary requirements. Please talk to the Engineers at Master Instruments to explore suitable options. Contact Us
Specifications:
| Model Number | EPESS-EBC25H-48-5-14.4-AIR |
| System Voltage | 48V |
| Inverter Charger | Victron Energy Mulitplus-II 48/5000/70-50-AU |
| Battery/s | 14.4kWh - 3 x Pylontech US5000B |
| Usable Capacity | 13.68kWh (95%) |
| Solar Controller | Victron Energy Smart Solar MPPT 250|70 |
| Monitoring & Control | Victron Energy Cerbo GX Mk2 |
| Graphical User Interface | Victron Energy GX Touch 50 |
| Protection | Noark N852894-2P 80A/500VDC MCCB |
| Noark N852901-2P 200A/500VDC MCCB | |
| Noark N84449-2P 10A/360VDC MCB | |
| Victron Energy Smart Battery Protect | |
| Cabinet | Enepower EBC25H-ODAIR |
| Cabinet Ingress | IP55 |

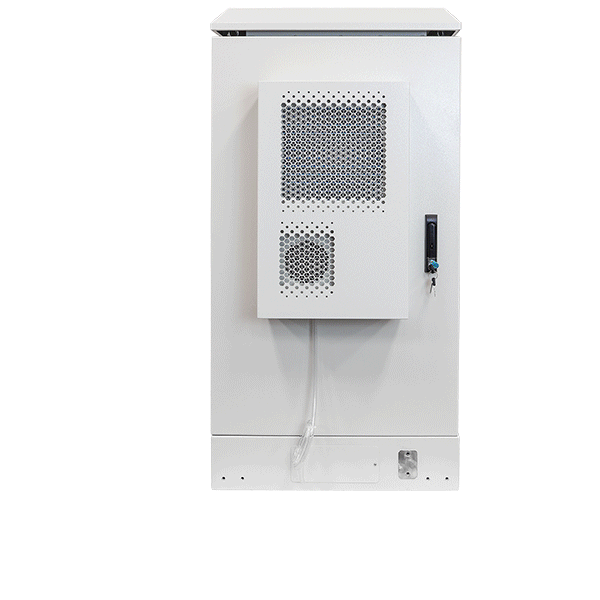

| Thermal Control | 500W A/C Unit (Battery Compartment) |
| Twin 120mm 48VDC Fans (PCE Compartment) | |
| Busbar | Copper Busbars (1000A Rated) |
| Compliance | Built to meet AS/NZS 5139, AS/NZS 5033, AS/NZS 4777 |
| Dimensions | 1151mm x 650mm x 1315mm Tall |
| Selling Unit | EACH |
|---|---|
| Model No | EPESS-EBC25H-48-5-14.4-AIR |
| Brand |
|
| Description | Install Ready 48V 14.4kWh 5KVA Stand Alone Power System A/C Cooled |
| Application | Residential Energy Storage, Off-Grid Solar installations, Remote power installations, Telecommunications & Infrastructure , Agricultural & Commercial Infrastructure, EV Charging |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Voltage | 48V |
| Watt Hour | 14400Wh |
| Nominal Capacity | 300Ah |
| Width | 650mm |
| Height | 1315mm |
| Length / Breadth / Depth | 1151mm |
| Categories |
Batteries Secondary (Rechargeable) Lithium Ion Batteries Lithium Iron Phosphate Battery Packs Rack Mount Battery Systems Stand Alone Power Systems (SAPS) Enepower Energy Storage Systems (ESS) |

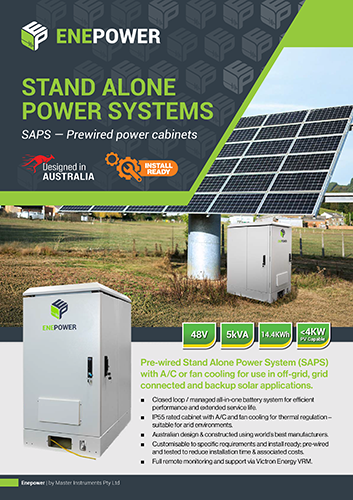

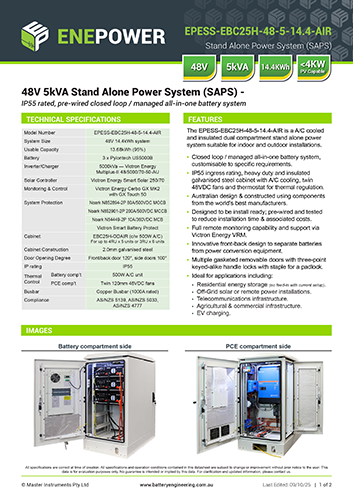

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
Bulky Goods
*Please note: Master Instruments takes great care in ensuring all products are delivered in the best condition possible.
This item is deemed as bulky goods freight and as such additional freight charges will apply.
Should you require a quote, please contact our friendly Sales team.
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
UN3480 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM ION BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
