Product Details

Model No
Selling Unit EACH
Categories Battery Chargers / Analysers / Testers
Multi Chemistry Chargers
RC Hobby Chargers
New Enecharger Range
Description Enecharger TReX multi-function AC/DC input fully programmable charger for most types of rechargeable batteries including Li-Ion, Li-Po, LiFE, NiCd, NiMH, SLA. 0.1A to 5A charge rate with built in discharge function
Width 90mm
Height 31.2mm
Length/Breadth/Depth 151.5mm
Weight 369g

The Enecharger TReX  is a fully automatic battery charger suitable for Lithium Ion/Polymer/Phosphate, NiCd/NiMH and Lead Acid Batteries.
Input: 100-240VAC OR 12VDC Battery / 11-18VDC Power Supply.
Output: 0.1 to 5 amp charge rate. 0.1 to 2.0 Amp discharge rate.

  • Clear blue LCD backlit display for easier visibility.
  • Simple push button programming functionality.
  • 10 programmable memory settings.
  • Built in cooling fan for extra efficiency.
  • Portable size, light weight, rugged aluminium case.
  • Integrated battery balancer. Individual cell balancing of Lithium based rechargeable batteries for 2 cell, 3 cell, 4 cell & 5 cell battery packs.
  • Safety features include: reverse polarity protection; input voltage error warning; cell-count/mismatch warning.
  • Temperature Probe port (probe not included)

Charges the following battery types:

  • 1 to 5 (3.7V-18.5V) Lithium Ion/Lithium Polymer cells.
  • 1 to 6 (3.2V-19.2V) Li-Fe (Lithium Ion Phosphate) cells.
  • 1 to 15 (1.2V-18V) Ni-Cd/Ni-MH cells.
  • 6V & 12V lead acid batteries.

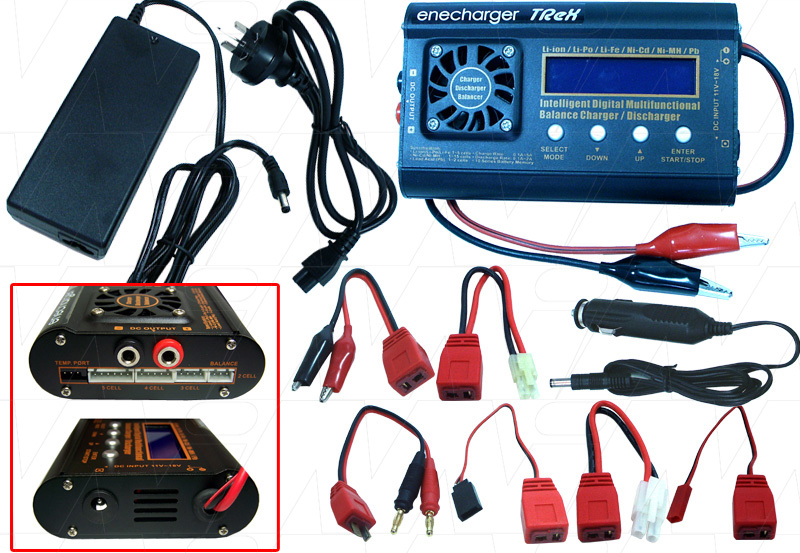

The TReX charger includes the following connector leads:

  • JST BEC plugs.
  • Futaba/JR/Hitech servo plugs.
  • Tamiya plugs.
  • Micro Tamiya/Nikko plugs.
  • Alligator clip leads.

The TReX charger is packaged with both a world voltage (100-240V) AC input adaptor and a 12V car plug power input.

General rule for charging NiCd & NiMH batteries.
