Pylontech US3000
48V 74Ah 3552Wh rack mounted battery module LiFePO4 15S2P
Important Information: This Pylontech Battery can be connected in up to 25 strings of 8 batteries for a total of 200 US3000 batteries in parallel. No Series connection allowed External BMS A LV-HUB communications hub is required when more than 1 string of batteries is paralleled. A single LV-HUB communications hub can manage up to 5 strings of 8 batteries for a total of 40 US3000 batteries per LV-Hub A total of five LV Hubs and their associated 40 batteries can then be parralled to a total 200 US3000 Batteries. Systems containing between 2 to 5 LV Hubs will require 1 additional LV Hub to act as the Master Hub. Communications:
Cabinets:
Click Here to view Cabinets & Accessories for this battery module
|

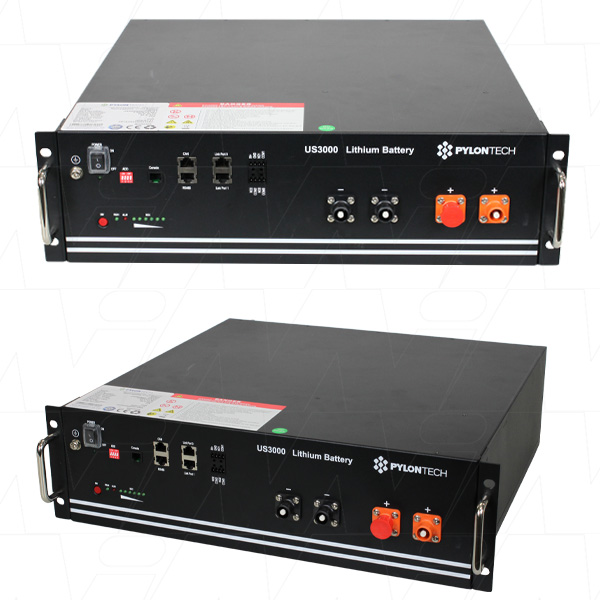

Pylontech US3000 48V 74Ah Rack Mounted LiFePO4 Battery Module
US3000 is the latest HESS battery system designed by Pylontech. It's long life characteristics, highest energy and power density in the industry, fashionable design, easiness of installation and expansion, all reflect the real requirements of end users and the strong technical capability of Pylontech.
Pylontech ensure the highest quality by designing & manufacturing their own Lithium Phosphate (LiFePO4) batteries and BMS boards.
Features:
- Cycle life: >6000 cycles @ 25°C with 90% DoD for daily cyclic applications
- Usable capcity of 3.2kWh @ 48 VDC
- Working Temperature Range -10°C to 50°C, (Charging 0~50°C: Discharging -10~50°C)
- Compact and fashionable 19" rack design to suit bracket, rack or cabinet installations
- Modular design gives the you the power to design systems from 3.5kWh to a commercial sized 710kWh
- Compatible with many available Hybrid inverters
- Safety Cert. CE,TüV, UL, RoHS, UN38.3, IEC62619, IEC62040, IEC62477, IEC61000-6-2,IEC61000-3
- Communication Protocols: CAN, RS485, RS232
- 15+ Year Design Life
- 10 year Warranty
- Clean Energy Council Approved (CEC)
*Please note: the UP/US Cable Kit is required for connection to the Inverter/Charger |
Selling Unit | EACH |
---|---|
Model No | US3000 |
Brand | |
Description | 48V 74Ah 3552Wh rack mounted battery module LiFePO4 15S2P |
Application | Home Power Storage, Telecommunications, Off Grid power, Industrial Power, Remote Infrastrucure Power |
Chemistry | Lithium Iron Phosphate (LiFePO4) |
Voltage | 48V |
Watt Hour | 3552Wh |
Nominal Capacity | 74Ah |
Maximum Continuous Discharge Current | 74A |
Size | 15S2P |
Width | 442mm |
Height | 132mm |
Length / Breadth / Depth | 420mm |
Weight | 32000g |
Categories |
Lithium Ion Batteries Lithium Iron Phosphate Battery Packs 48 Volt Series LiFePO4 Rack Mount Battery Systems Rack Mount Batteries Pylontech Rack Mount Battery Modules Telecommunication Base Stations |
Data Sheet |
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
This product appears on the Clean Energy Council list of currently approved batteries (energy storage devices)
View the full list here
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
UN3480 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM ION BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.
