Noark Inverters EX9N-DH-6KS-AU BONUS

LIMITED TIME OFFER:

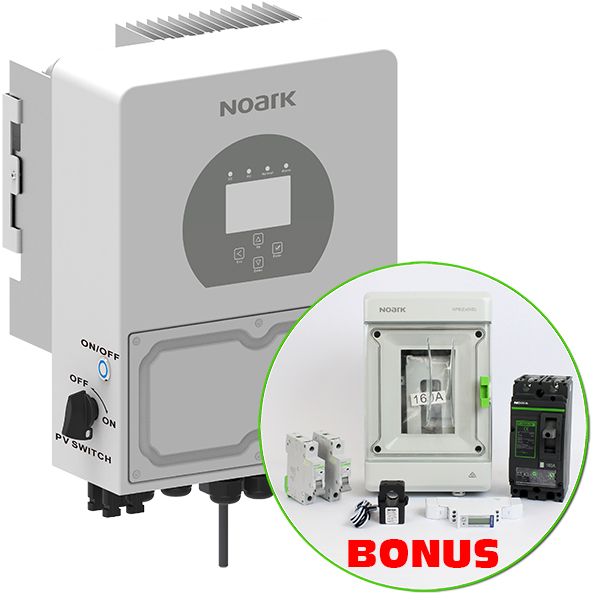

Noark 48V 6kVa Hybrid Inverter Charger with Bonus Switchgear kit FREE OF CHARGE!

For a limited time, purchase one of Noark's new Hybrid Inverter/Chargers and we’ll supply an array of switchgear to assist with your install… That’s up to $450* worth of gear – FREE!

Offer is available for the 5,6 & 8kVa Single Phase models, AND the 10 & 12 kVa Three Phase models - See the details below… *Approximate retail value & offer available for a limited time or while stocks last

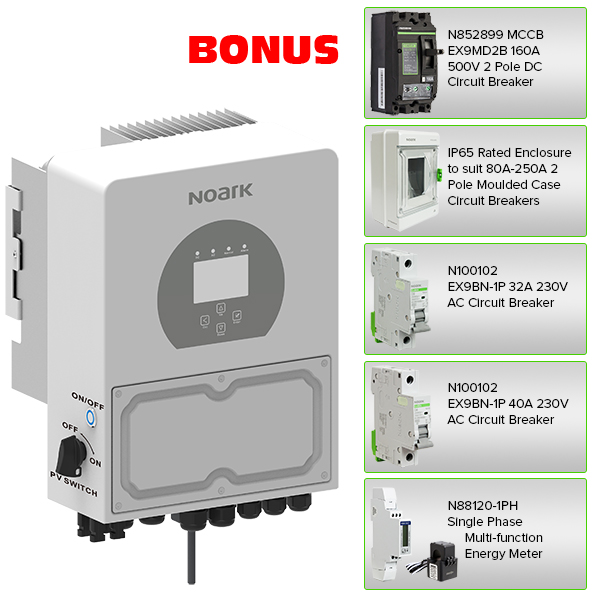

Bonus Package Contents:

48V 6kVa Single Phase Hybrid Inverter Charger with 135A-40A MPPT (Details Below)

N852899 MCCB EX9MD2B 160A 500V 2 Pole DC Circuit Breaker

IP65 Rated Enclosure to suit 80A-250A 2 Pole Moulded Case Circuit Breakers

N100101 EX9BN-1P 32A 230V AC Circuit Breaker

N100102 EX9BN-1P 40A 230V AC Circuit Breaker

N881120-1PH Single Phase Multi-function Energy Meter with ESCT-TU24 Current Transformer (Click to View Manual)

Example System Schematic: Click here to view where the above items are used

INVERTER DETAILS:

The Noark SION range of single-phase hybrid inverters are CEC Approved (Multiple Mode Inverter - PV and Battery) & suitable for both on & off-grid applications.

This multifunctional Hybrid inverter, combines all the functions of an inverter, dual MPPT solar charge controllers (7800W Array size), & multi-chemistry battery charger which can all be monitored and controlled with the myNOARK software monitoring package.

Suitable for residential and light commercial use, the Noark range maximises the self-consumption rate of solar energy and increases your energy independence.

During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via the Noark Single Phase Hybrid Inverter. Finally, the stored energy can be released when the loads require it. The battery can also be charged by a generator to ensure uninterrupted supply in the event of grid blackout. It is also equipped with RS485/CAN port for battery communication.

FEATURES:

• Pure Sine Wave inverter with Smart battery charger suitable for multiple Battery Brands and Chemistries
  • Overload/over temperature/short circuit protection.
  • RS485/CAN port for battery communication
• Dual MPPT
  • 2 strings for 1 MPP tracker, 1 string for 1 MPP tracker
  • Smart settable three stage MPPT charging for optimised battery performance
• IP65 Rated
• Max. 16 pcs parallel for on-grid and off-grid operation
• Compatible with mains voltage or generator power
  • AC input & Generator input port for Generator or String Inverter AC input
• AC couple to retro fit to existing solar system
• Auto restart while AC is recovering.
• Wireless configuration or via Colour touch LCD screen
  • Configurable 6 time periods for battery charging current/voltage based on applications.
  • Configurable AC/Solar/Generator Charger priority
  • Configurable battery charging current/voltage based on applications
• 10 Year Australian Backed Warranty (to 70% usable capacity)
• Australian Based technical support team

myNOARK 24/7 Monitoring Remote Upgrade & diagnosis Programmable applications include:

• Self-consumption and feed-in to the grid.
• Supply priority for battery or grid.
• Multiple operation modes: On grid (CEC Approved), off grid and UPS.
• limit function, prevent excess power overflow to the grid.
• Time of use function.
• Smart Load Function
