Noark Inverters EX9N-DH-10KT-AU BONUS

LIMITED TIME OFFER:

Noark 48V 10kVa Three Phase Hybrid Inverter Charger with Bonus Switchgear kit FREE OF CHARGE!

For a limited time, purchase one of Noark's new Hybrid Inverter/Chargers and we’ll supply an array of switchgear to assist with your install… That’s up to $950* worth of gear – FREE!

Offer is available for the 5,6 & 8kVa Single Phase models, AND the 10 & 12 kVa Three Phase models - See the details below… *Approximate retail value & offer available for a limited time or while stocks last

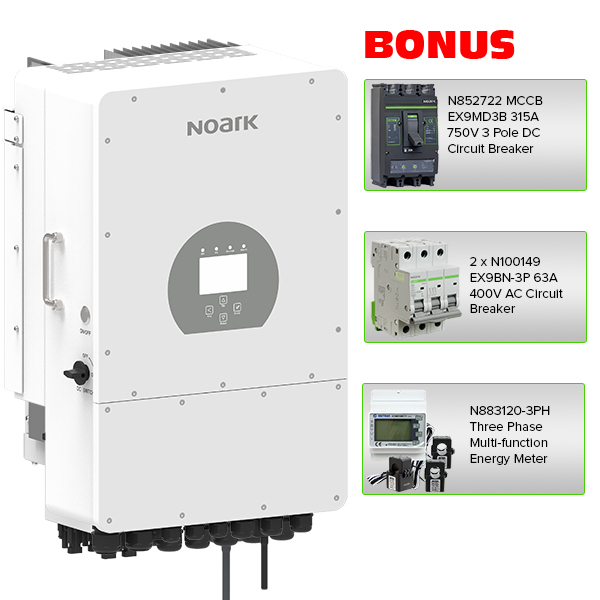

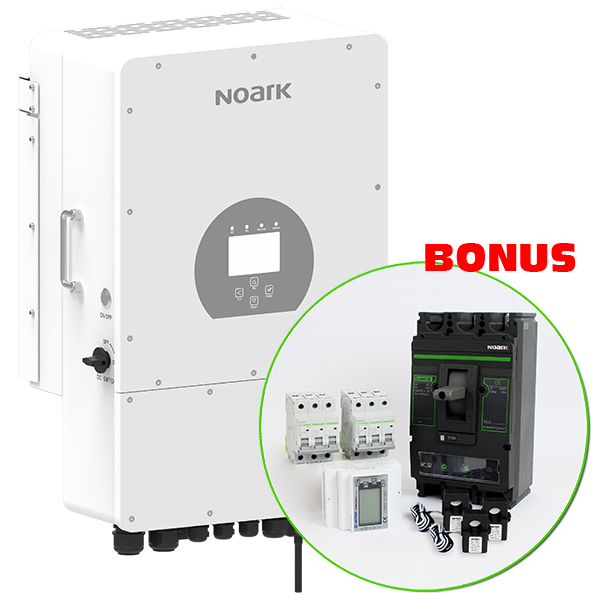

Bonus Package Contents:

48V 10kVa Three Phase Hybrid Inverter Charger with 210A-45A MPPT (Details Below)

N852722 MCCB EX9MD3B 315A 750V 3 Pole DC Circuit Breaker

2 x N100149 EX9BN-3P 63A 400V AC Circuit Breaker

N883120-3PH Three Phase Multi-function Energy Meter with 3 x ESCT-TU24 Current Transformers (Click to View Manual)

Example System Schematic: Click here to view where the above items are used

INVERTER DETAILS:

The Noark TRINIX range of Three-phase hybrid inverters are CEC Approved (Multiple Mode Inverter - PV and Battery) & suitable for both on & off-grid applications.

This model is specifically designed for use with ELV (extra low voltage) 48 VDC battery systems. With its compact design and high-power density, these units provide savings on device investment with their 1.3 DC/AC ratio.
It supports three phase unbalanced output, extending the application scenarios. These models come equipped with  2 x CAN ports for BMS and parallel, 1 x RS485 port for BMS, 1 x RS232 port for remote control, 1 x DRM port, which makes for a smart and flexible system.

This multifunctional Hybrid inverter, combines all the functions of an inverter, dual MPPT solar charge controllers (15000 W Array size), & multi-chemistry battery charger which can all be monitored and controlled with the myNOARK software monitoring package.

Suitable for residential and light commercial use, the Noark range maximises the self-consumption rate of solar energy and increases your energy independence.

During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via the Noark Single Phase Hybrid Inverter. Finally, the stored energy can be released when the loads require it. The battery can also be charged by a generator to ensure uninterrupted supply in the event of grid blackout. It is also equipped with RS485/CAN port for battery communication.

FEATURES:

• 230V/400V Three phase Pure Sine Wave inverter with Smart battery charger suitable for multiple Battery Brands and Chemistries
  • 48V low voltage battery, transformer isolation design
  • 100% unbalanced output, each phase; Max. output up to 50% rated power
  • Overload/over temperature/short circuit protection.
  • RS485/CAN port for battery communication
• Dual MPPT
  • 2 strings for 1 MPP tracker, 1 string for 1 MPP tracker
  • Smart settable three stage MPPT charging for optimized battery performance
• IP65 Rated
• Max. 10 pcs parallel for on-grid and off-grid operation
• Compatible with mains voltage or generator power.
  • AC input & Generator input port for Generator or String Inverter AC input
• AC couple to retro fit to existing solar system
• Auto restart while AC is recovering.
• Wireless configuration or via Colour touch LCD screen
  • Configurable 6 time periods for battery charging current/voltage based on applications.
  • Configurable AC/Solar/Generator Charger priority
  • Configurable battery charging current/voltage based on applications
• 10 Year Australian Backed Warranty (rated to 70% capacity)
• Australian Based technical support team

myNOARK 24/7 Monitoring , remote upgrade and diagnosis programmable applications include

• Self-consumption and feed-in to the grid.
• Supply priority for battery or grid.
• Multiple operation modes: On grid (CEC Approved), off grid and UPS.
• limit function, prevent excess power overflow to the grid.
• Time of use function.
• Smart Load Function
