Enepower EBC50H-ID

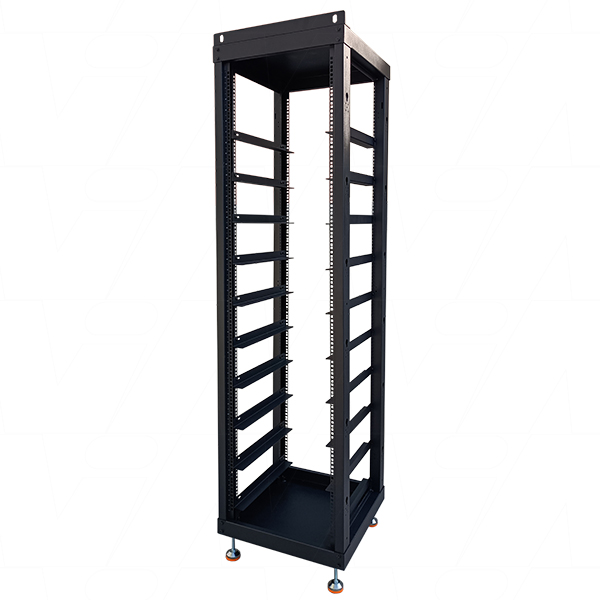

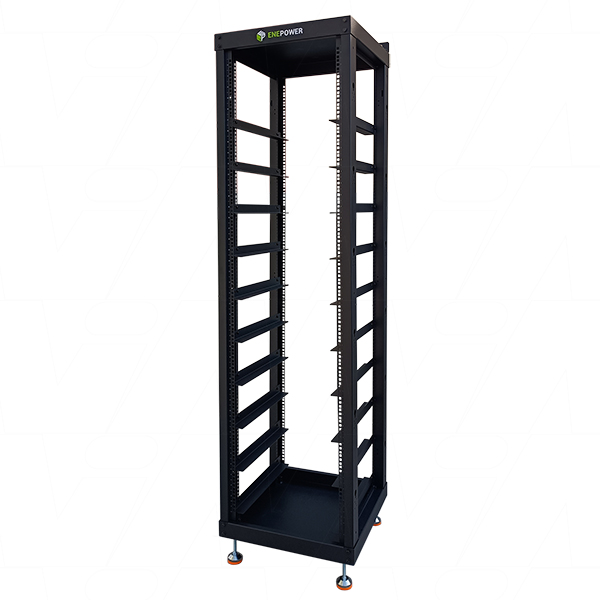

EBC50H-ID Enepower black indoor battery rack suitable to house up to 10 x 4RU sized 19" battery modules (up to 51.2kWh, max 530mm deep) and suitable for modules from Pylontech, Drypower, ZYC, BYD, Discover, Aeson, AERL, BSL, Mictronix and many more.

This product comes Flat-packed Click here to see assembled model

Battery Storage Capacity:

• 4RU Modules x 10
• 3RU Modules x 12

Features:

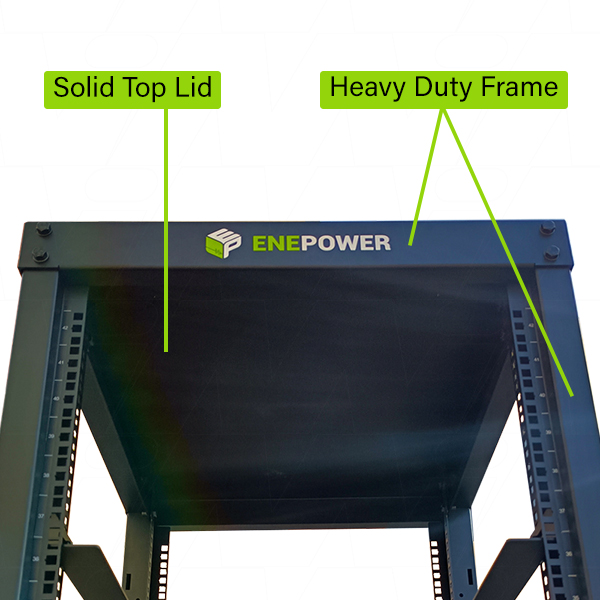

• Heavy Duty Galvanised steel construction - Colour RAL9005
• Pressed & welded top and bottom plates with 4 cable knock-outs each

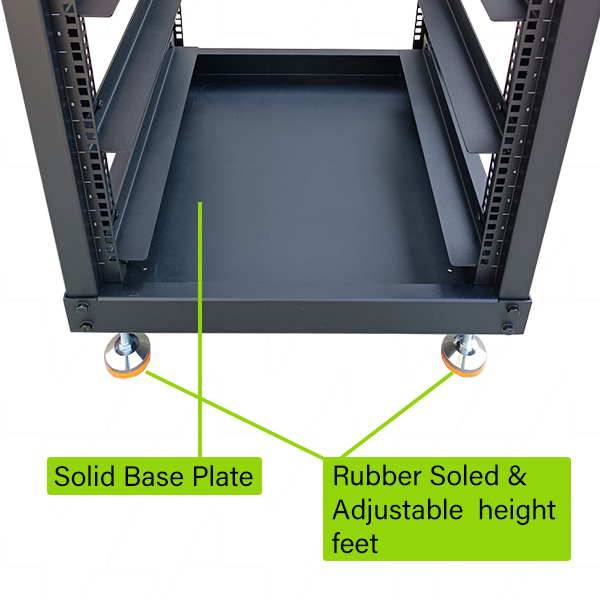

• 4 rubber-soled levelling feet to ensure sturdy placement
• 20 x L shaped brackets - adjustable to suit different module heights
• Slot holes to secure battery modules into place

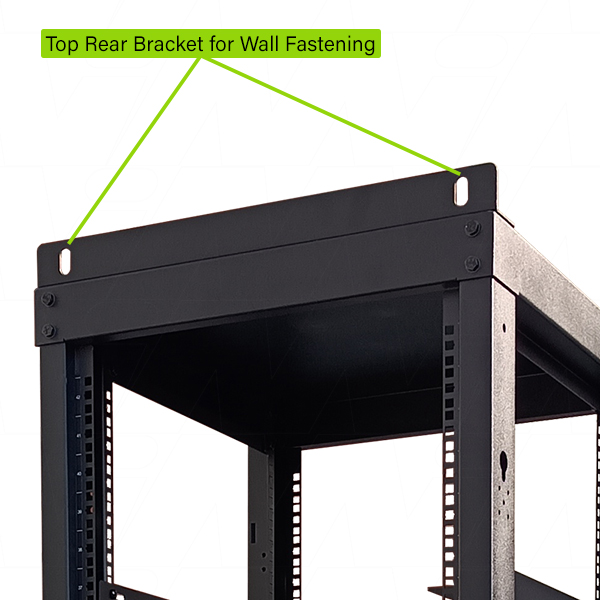

• Top bracket to allow for wall fastening of the rack (nuteserts in top plate allow for both side & back fixing)

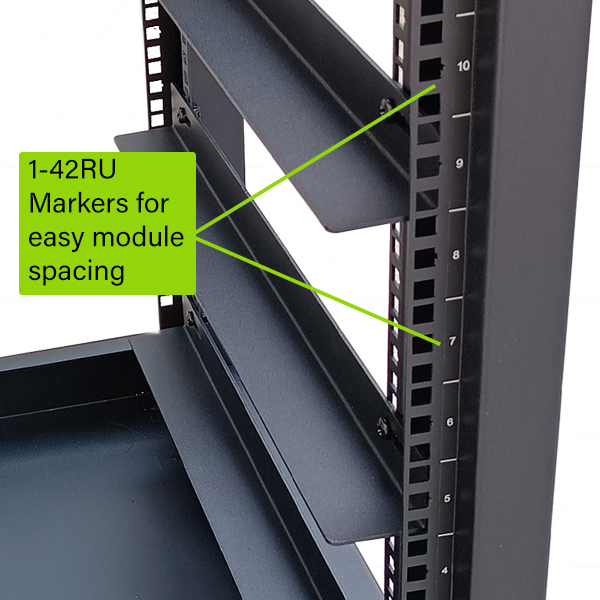

• 1 -42 RU Markers to assist with module spacing
• Dimensions 580mm x 580mm x 2145mm tall (including feet)
• Cabinet Load Capacity 600 Kgs* (when fixed to wall with top plate)

*Please note: Assembly will be required upon receipt. (Tools required: M13 Socket Set & No.2 Phillips head screw driver)

If you dont want the hassles of assembling the battery rack, consider the Assembled version.

EBC50H-ID ASSEMBLED

Click to view Flat-packed Box images

Box Dimensions:

1. 2140mm long x 190mm wide x 190mm tall (gross weight 33kg)
2. 640mm long x 640mm wide x 200mm tall (gross weight 46kg)

Warranty: The EBC50H-ID comes with a standard warranty of Three (3) years.

Compatible Battery Modules - Suits most standard 19" rack mount batteries including:

• 4RU size such as Pylontech US5000, Drypower DP-12400-R, DP-24200-R, DP-51100-R, BSL B-LFP48-100E, Mictronix MPS-24-2.5, Mictronix MPS-48-5.1
• 3RU size such as Pylontech US3000, Pylontech UP2500, AERL LiFe2-5120S, Discover AES 5120, ZYC Simpo 5000, Aeson APS5000, BYD LV Flex
• 2RU Size such as Pylontech US2000
