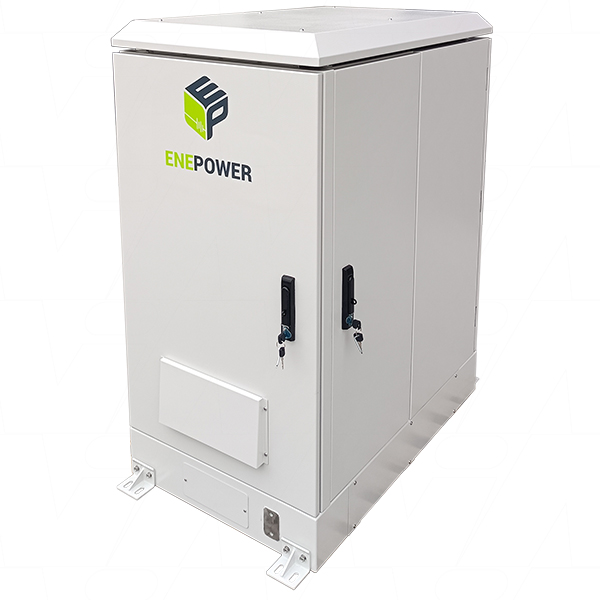

Enepower EBC25H-ODAIR

EBC25H-ODAIR Enepower All-in-one IP55 Rated A/C Cooled Dual Compartment Outdoor Battery Cabinet suitable for up to 5 x 4RU sized 19" battery modules (up to 25.6kWh, max 420mm deep) and houses power conversion equipment such as Victron, Deye, SMA, Selectronic, Goodwe, Sungrow and many more.

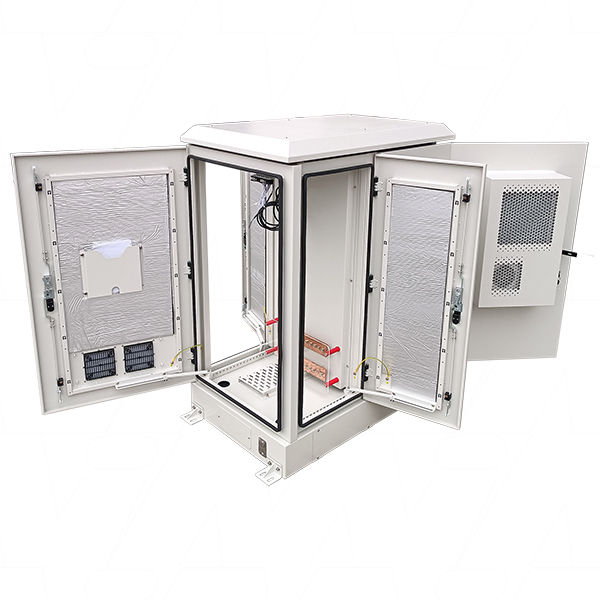

This innovative design features separate compartments to house the battery modules, and power conversion equipment, enabling easy access and simplified installations.

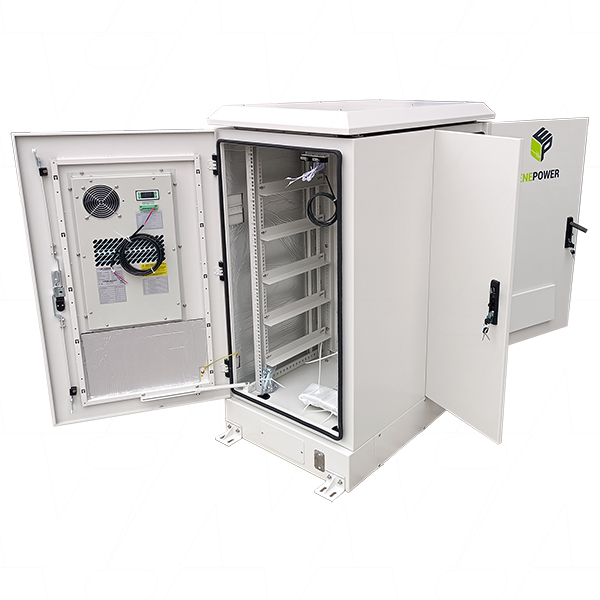

• The Battery compartment can house up to 5 x 4RU sized modules (6 x 3RU) and is cooled by a DC48V 500W Air Conditioning Unit.
• The Power Conversion Equipment (PCE) compartment features a mounting plate, cable tray to conveniently house Inverters, Solar Controllers plus copper busbars for battery cable connections

Battery Storage Capacity:

• 4RU Modules x 5
• 3RU Modules x 6

Cabinet Features:

• Heavy Duty Galvanised steel construction - Colour RAL7035
• 10mm thick NBR insulation
• IP55 ingress rating

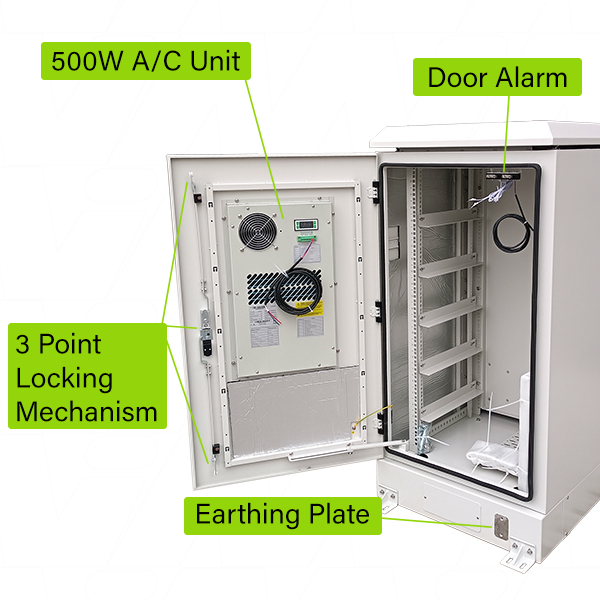

• Multiple gasketed door access points via removable metal doors with three-point keyed-alike handle locks with staple for a padlock

  • Front/Rear Door stays @ 120°
  • Side Door stays @ 100°
  • 4 x Door Alarms
  • Battery Compartment x 1 door
  • PCE Compartment x 1 door + 2 side access doors

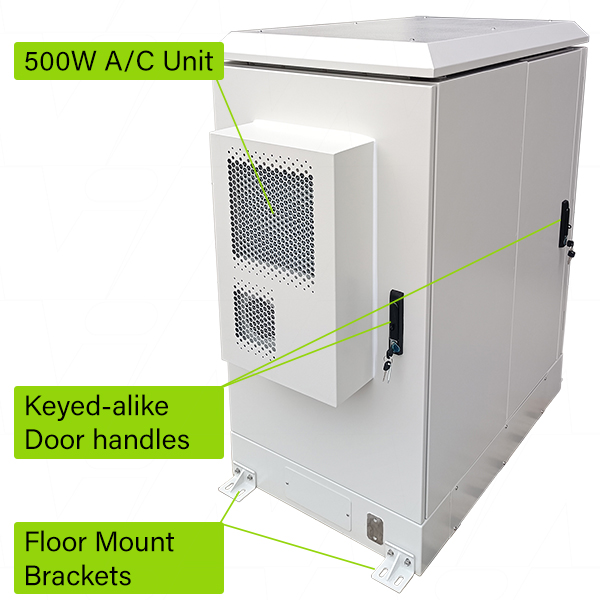

• DC 48V 500W Air Conditioning Unit - Battery Compartment (click for Manual)
• Twin 48VDC Fans with Thermostat - PCE Compartment

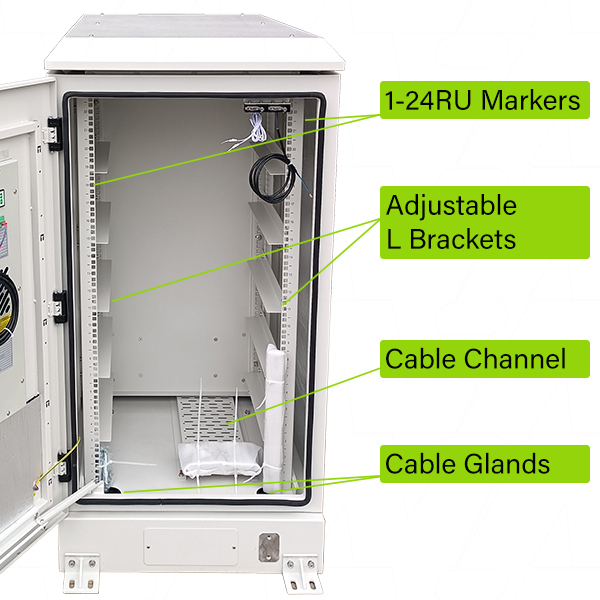

• 6 x adjustable height L Brackets/Rails for module installation (5 pre-installed)

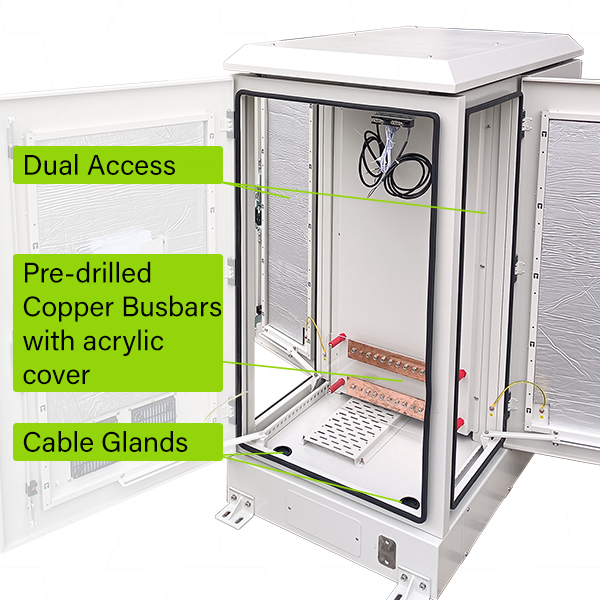

• 2 x 330mm x 60mm x 8mm Copper Busbars (1000 Amp Rating) with 8mm bolts for battery connection
• Acrylic Busbar Cover , Busbar insulators & stainless steel bolts
• Handy DC 48V internal LED Lights
• Document pocket
• Removable filters
• 4 x Floor mounting brackets

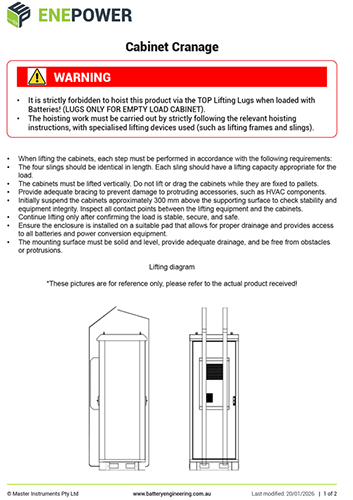

• 4 x Lifting Hooks to assist with cabinet placement - see Lifting Guidance Tech Note

Warranty: The EBC25H-ODAIR comes with a standard warranty of Three (3) years on the cabinet, One (1) year for the Air Conditioning Unit

Compatible Battery Modules - Suits most standard 19" rack mount batteries including:

• 4RU size such as Drypower DP-12400-R, DP-24200-R, DP-51100-R, Pylontech US5000, Mictronix MPS-24-2.5
• 3RU size such as Pylontech US3000, Pylontech UP2500*
• 2RU Size such as Pylontech US2000

*Fans and AC require a Victron Orion TR 24/48 DC-DC converter when using 24V Battery systems
