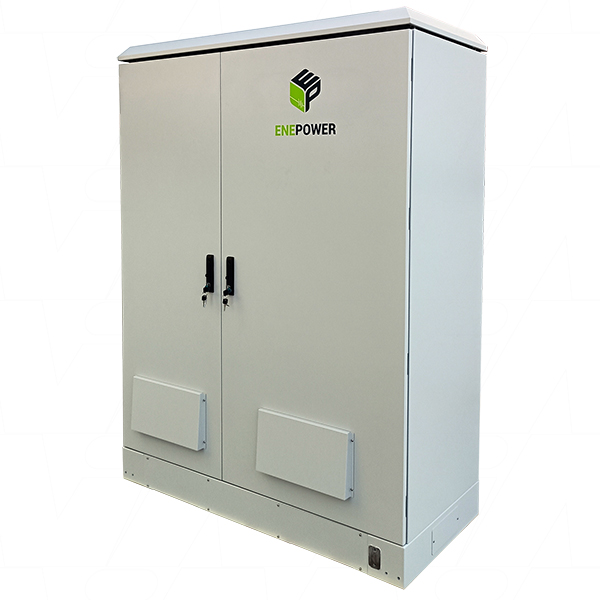

Enepower EBC40H-ODFAN

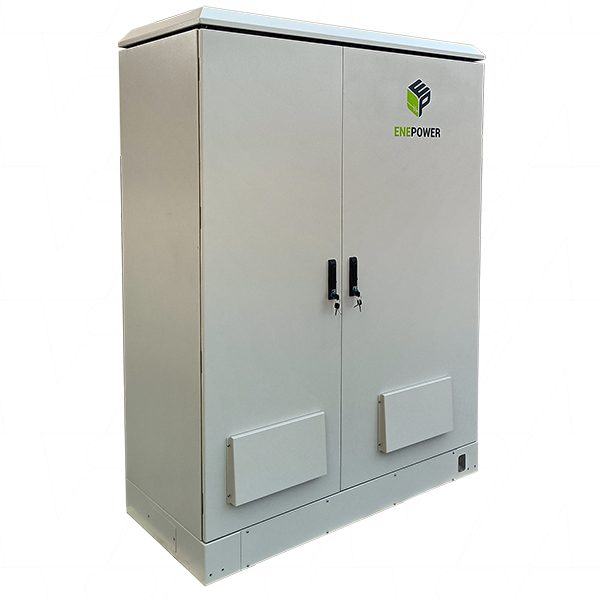

EBC40H-ODFAN Enepower 2 Bay All-in-one IP55 Rated Fan Cooled Outdoor Battery Cabinet suitable for up to 8 x 4RU sized 19" battery modules (up to 40.92kWh, max 500mm deep) and suitable for modules from Pylontech, Drypower, AERL, Discover, ZYC, Mictronix, BSL etc. Houses power conversion equipment such as Victron, Deye, SMA, Selectronic, Goodwe, Sungrow and many more.

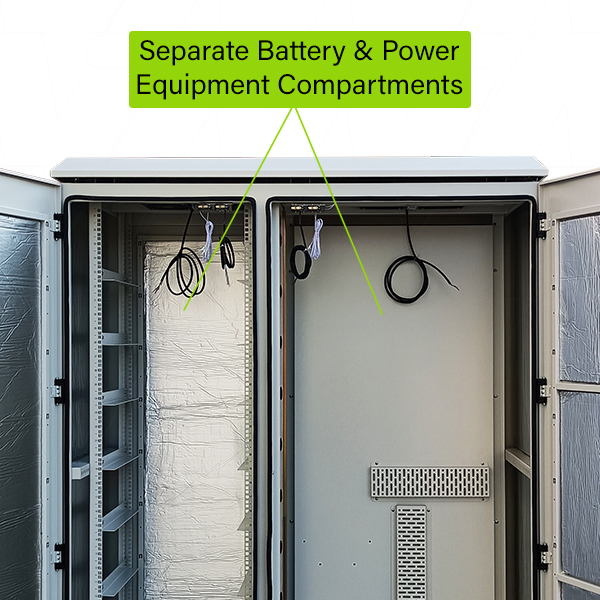

This innovative design features separate compartments to house the battery modules, and power conversion equipment, enabling easy access and simplified installations.

• The Battery compartment can house up to 8 x 4RU sized modules (10 x 3RU) and is cooled by twin DC48V Fans.

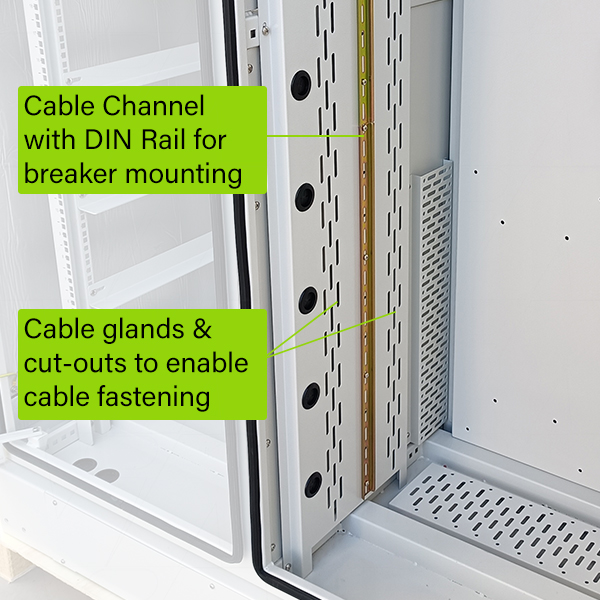

• The Power Conversion Equipment compartment features a Mounting plate, DIN Rail and 3 cable trays to conveniently house Inverters, Solar Controllers and Breakers and is cooled by twin DC48V Fans.

Battery Storage Capacity:

• 4RU Modules x 8
• 3RU Modules x 10

Cabinet Features:

• Heavy Duty Galvanised steel construction - Colour RAL7035
• 10mm thick NBR insulation on doors, sides and roof
• IP55 ingress rating
• Dual gasketed door access points via removable metal doors with 3 point keyed-alike handle locks with staple for a padlock
  • Door stays @ 120°

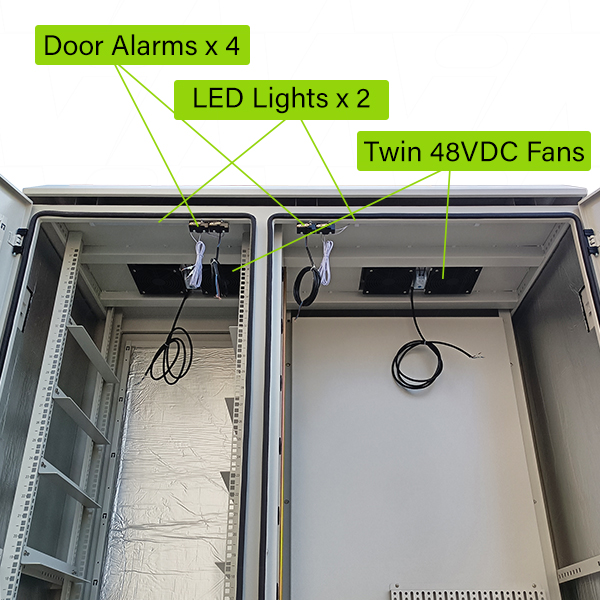

  • 4 x Door Alarms
  • Battery compartment: LHS Door
  • Power Conversion Equipment compartment: RHS Door

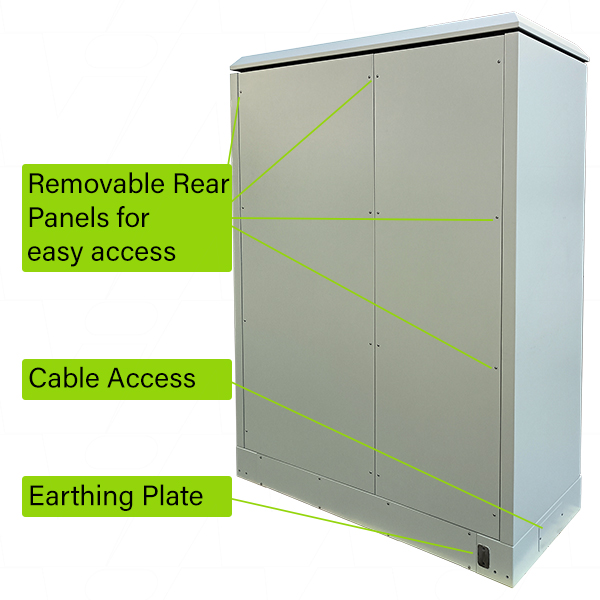

• Removable rear panels for easy access
• Twin 48VDC Fans with Thermostat per comparment

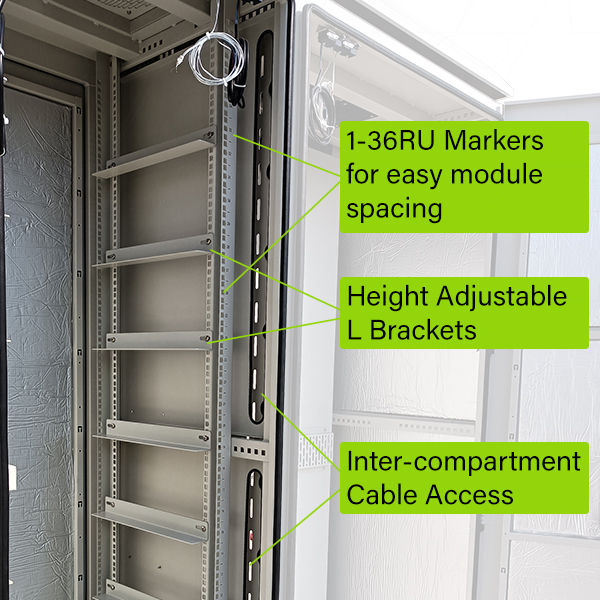

• 10 x adjustable height L Brackets/Rails for module installation (8 pre-installed)
• Handy DC 48V internal LED Lights
• Document pocket
• Removable filters
• 4 x Floor mounting brackets

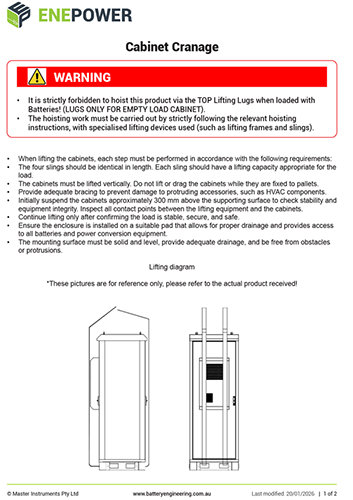

• 4 x Lifting Hooks to assist with cabinet placement - see Lifting Guidance Tech Note

Warranty: The EBC40H-ODFAN comes with a standard warranty of Three (3) years

Compatible Battery Modules - Suits most standard 19" rack mount batteries including:

• 4RU size such as Pylontech US5000, Drypower DP-12400-R, DP-24200-R, DP-51100-R, BSL B-LFP48-100E, Mictronix MPS-24-2.5, Mictronix MPS-48-5.1
• 3RU size such as Pylontech US3000, Pylontech UP2500*, AERL LiFe2-5120S, Discover AES 5120, ZYC Simpo 5000
• 2RU Size such as Pylontech US2000

*Please Note: Busbars are not supplied with this cabinet

EBC40HBB-450L Busbar Kit available separately

*Fans require a Victron Orion TR 24/48 DC-DC converter when using 24V Battery systems
