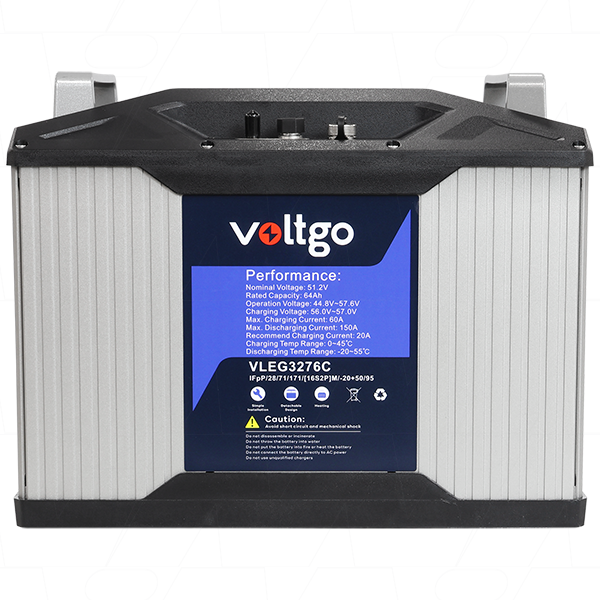

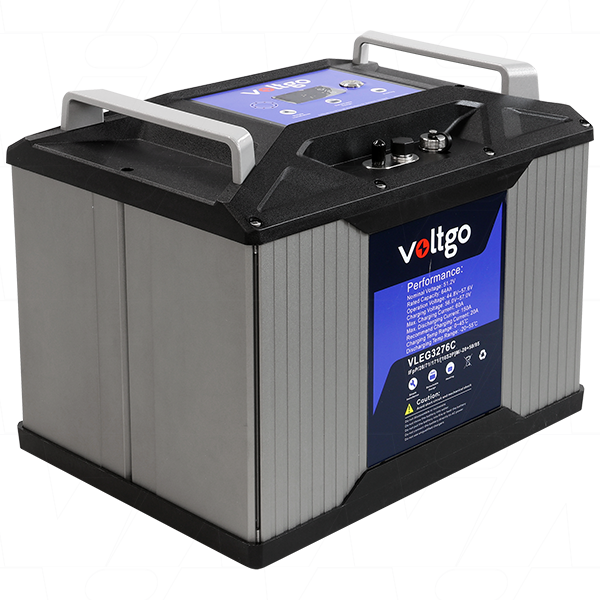

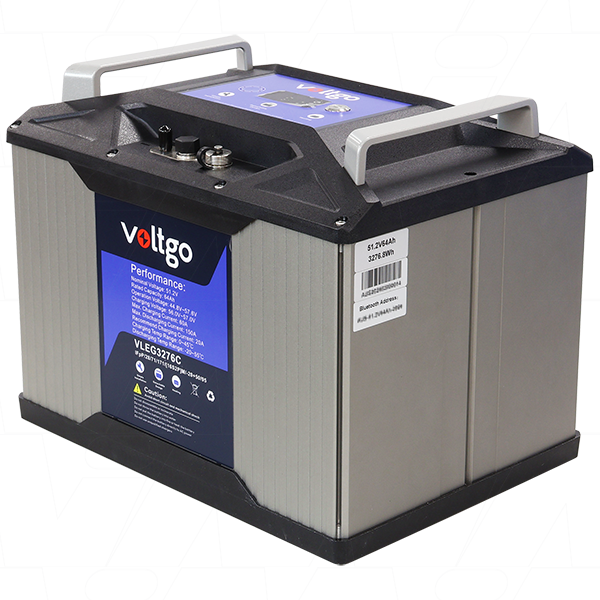

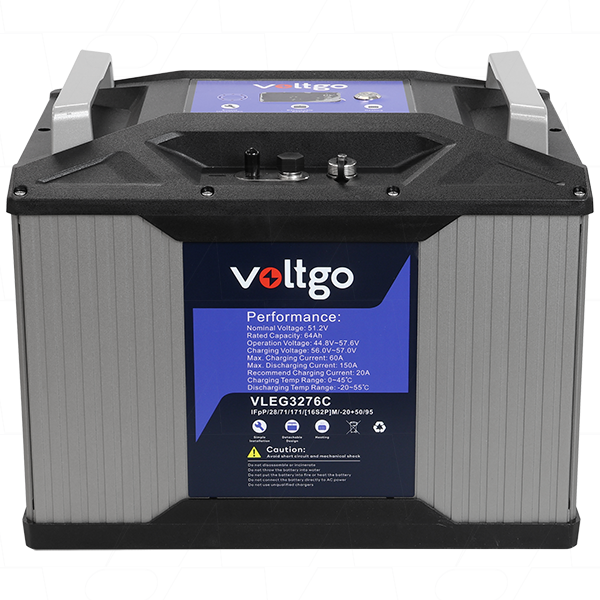

VoltGo VLEG3276C
51.2V 64Ah 3276Wh LiFePO4 IP65 rated battery for use in Golf Carts
The VoltGo VLEG3276C is a 51.2V 64Ah advanced Lithium Iron Phosphate (LiFePO4) high capacity battery module with superior cycle life, specifically designed for use in golf carts, RVs, marine systems, solar lights, trolling motors, and small energy storage.
Featuring a high quality robust & insulated aluminium casing, rated to IP65, the VoltGo modules provide a lightweight and maintenance free alternative to traditional lead acid deep cycle batteries, or a high quality replacement for existing lithium batteries.
When temperatures drop below 0°C and your battery is connected to external power, VoltGo's heating capabilities kick in to keep your battery between 0°C and 45°C, to enable charging and discharge at temperatures as cold as -20°C - Perfect for those early morning tee-times in winter.
Capable of being used individually, or expandable into systems of up to 16 in parallel, the VoltGo VLEG3276C is expandable to provide longer runtime between recharges.
The application specific Battery Management System has been engineering to handle the rigours of Golf Cart usage, including the ability to handle to high rate in-rush currents generated from regenerative braking systems.
The VoltGo VLEG3276C comes standard with Bluetooth output for battery parameter monitoring from your smart device in addition to the easy-to-read and operate top mounted LCD screen providing valuable battery parameters such as State of Charge, Current draw, Cell temperatures and more.
Increase Capacity & Run Time
This VoltGo Lithium Iron Phosphate battery can be connected in up to 16 in parallel (16P) - NO SERIES Connection allowed. *See Product User Manual or Datasheet for more information.
Let Your Battery Talk to You
Connect to your battery from your phone or tablet for real-time monitoring of your battery's status, including voltage, state of charge, consumption, health and cycle count, all to ensure you make it back to the 19th hole.
Intelligent BMS
Worry less about your battery with the smart battery management system, which offers protection against short circuit, over/under voltage and over/under temperature fluctuations. When multiple modules are used in a system, the self-balancing function also keep all batteries working together to extended service life.
Fire Protections
To compliment the already comprehensive BMS safety protocols, the VoltGo VLEG3276C is housed wihtin a robust and insualted aluminium casing with in-built aerosol fire suppression system providng last line of defence to ensure safe operation and swift fault mitigation.

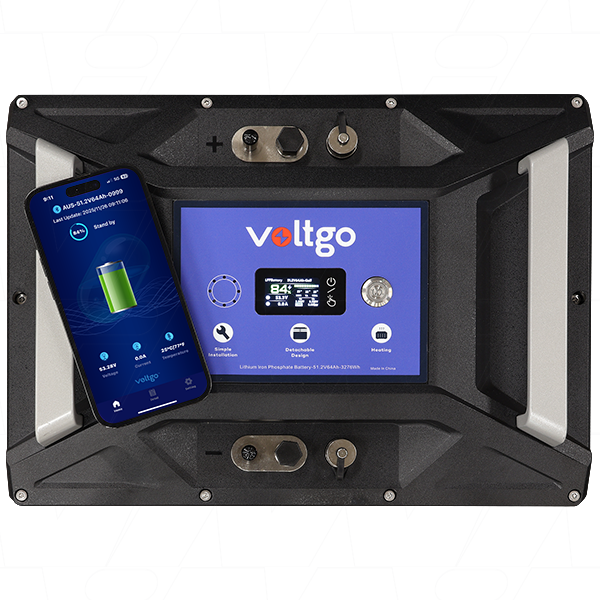

Smart Integration & LCD Screen
The top mounted panel features an easy to operate and read LCD Screen to provide live battery parameters such as SoC, Current draw, Cell temps and more. The ON/OFF switch allows for the batteries to be isolated when not in use and The CAN/RS485 Comms Ports allow for easy system expansion.
Internal Heater
For those cold morning starts, When the the VoltGo VLEG3276C is connected to a suitable battery charger, it engages the internal heating function to bring the battery up to charging temperature to then commence charging. You'll never miss your tee-time again!
IP65 Water and Dust Resistant
The battery is IP65 protected against dust and offer significant protection against water splashes and sprays, making them suitable for nearly any application.
Specifications:
| Voltage (V) | 51.2V |
|---|---|
| Capacity (Ah) | 64Ah |
| Watt Hour (Wh) | 3276Wh |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | >6000 cycles (0.5C@25°C, 80% DOD) |
| Max. continuous discharge current | 150A |
| Discharge cut-off voltage | 44.8V |
| Charge Voltage | 56.0~57.0V |
| Max. continuous charge current | 60A |
| Operating discharge temperature | -20°C to +50°C |
| Operating charge temperature | 0°C to +45°C (charger engages heater until battery reaches 0°C and then begins charging) |
| Storage temperature | -20°C to +60°C |
| Protections | Short Circuit, Over Charge/Discharge, Over/Under Temperature |
| Ingress Rating | IP65 rating |
| Series connection allowed* | NO |
| Parallel connection allowed* | YES - Up to 16P* *Only parallel batteries of the same model and capacity. (Contact Master Instruments if mixing old and new batteries) |
| Case structure | Rugged Insulated Aluminium |
| Compliances | UL1973, UN38.3 |
| Warranty | 5 years |
* No Series Connection Allowed
Recommended Chargers:
Delta-Q IC650 Series 48V 13.5A *Please note this charger will require a custom charge program installed prior to dispatch - please contact our friendly sales team to discuss.
| Selling Unit | EACH |
|---|---|
| Model No | VLEG3276C |
| Brand |
|
| Description | 51.2V 64Ah 3276Wh LiFePO4 IP65 rated battery for use in Golf Carts |
| Application | Golf Carts, AGV's |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Voltage | 51.2V |
| Watt Hour | 3276Wh |
| Nominal Capacity | 64Ah |
| Maximum Continuous Discharge Current | 150A |
| Termination | M8 |
| Width | 360mm |
| Height | 282mm |
| Length / Breadth / Depth | 261mm |
| Weight | 31.5kg |
| Categories |
Lithium Ion Batteries Lithium Iron Phosphate Battery Packs 48 Volt Series LiFePO4 VoltGo VoltGo Elite Lithium Golf Lithium Iron Phosphate Modules |

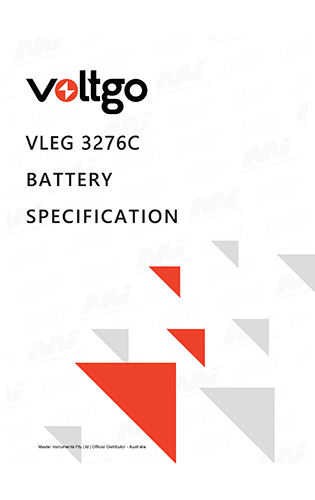

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
This product is certified to UN38.3
This battery has been tested & complies with the UN Model Regulation, Manual of Test & Criteria, Part III, Subsection 38.3
Read the UN38.3 Information and FAQ's Document.
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
UN3480 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM ION BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
VoltGo App Compatible
This battery is compatible with the VoltGo Bluetooth App.
The Voltgo Bluetooth app allows users to monitor Voltgo’s batteries via Bluetooth, providing real-time readings of the battery voltage, current, and temperature.
