Fronius Smart Meter CT A 400/5A
Fronius Smart Meter Current Transformer A 400/5A for 50kA-3 & TS 5kA-3 41,0010,0103
Fronius Smart Meter Current Transformer CT-A 400A
Optimisation of photovoltaics without risk: in large photovoltaic systems, high output current can no longer be recorded with Smart Meters that measure directly.
The Fronius Smart Meter CT current transformer transforms the measured current into a signal that is reliably measured and converted.
Installing the Fronius Smart Meter CT is especially convenient — thanks to the split-core technology, the current transformer can be placed around the conductor without having to disconnect the cable for installation.
Specifications:
| Compatible Smart Meters | Fronius Smart Meter 50kA-3, TS 5kA-3 |
| Accuracy | 1 (Depending on the apparent ohmic resistance) |
| Type of Installation | Split-Core |
| Diameter | 36 mm |
| Cable Length | 1 Metre |
| Temperature Range | -40°C - +65°C |
| Apparent ohmic resistance | 5 VA (Class 1) |
| Selling Unit | EACH |
|---|---|
| Model No | Smart Meter CT A 400/5A |
| Brand |
|
| Original Brand | Fronius 41,0010,0103 |
| Description | Fronius Smart Meter Current Transformer A 400/5A for 50kA-3 & TS 5kA-3 41,0010,0103 |
| Application | Residential and Light Commercial Solar, Off Grid Solar |
| Size | 400A |
| Width | 57mm |
| Height | 81.5mm |
| Length / Breadth / Depth | 38.4mm |
| Weight | 36g |
| Categories |
Power Products & Accessories Smart Meters Current Transformers Fronius Smart Meters Fronius Current Transformers Fronius Accessories Power Conversion Equipment Solar System Components |

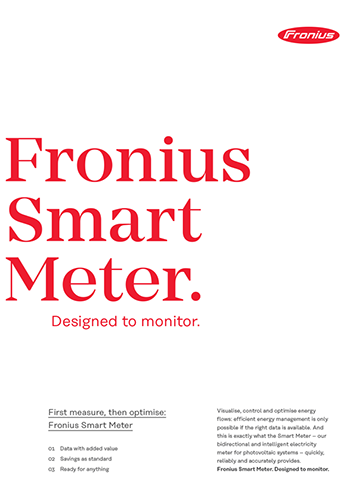

| Data Sheet |
|
