Fronius Smart MeterCT V 100/333mV
Fronius Smart Meter Current Transformer V 100/333mV for Smart Meter IP 41,0010,0104
Fronius Smart Meter Current Transformer CT-V 100A
Optimisation of photovoltaics without risk: in large photovoltaic systems, high output current can no longer be recorded with Smart Meters that measure directly.
The Fronius Smart Meter CT current transformer transforms the measured current into a signal that is reliably measured and converted.
Installing the Fronius Smart Meter CT is especially convenient — thanks to the split-core technology, the current transformer can be placed around the conductor without having to disconnect the cable for installation.
Specifications:
| Compatible Smart Meters | Fronius Smart Meter IP & WR 100-600 |
| Accuracy | 1 |
| Type of Installation | Split-Core |
| Diameter | 16 mm |
| Cable Length | 1 Metre |
| Temperature Range | -40°C - +65°C |
| Selling Unit | EACH |
|---|---|
| Model No | Smart MeterCT V 100/333mV |
| Brand |
|
| Original Brand | Fronius 41,0010,0104 |
| Description | Fronius Smart Meter Current Transformer V 100/333mV for Smart Meter IP 41,0010,0104 |
| Application | Residential and Light Commercial Solar, Off Grid Solar |
| Size | 100A |
| Width | 31.5mm |
| Height | 46mm |
| Length / Breadth / Depth | 31.5mm |
| Weight | 16g |
| Categories |
Power Products & Accessories Smart Meters Current Transformers Fronius Smart Meters Fronius Current Transformers Fronius Accessories Power Conversion Equipment Solar System Components |

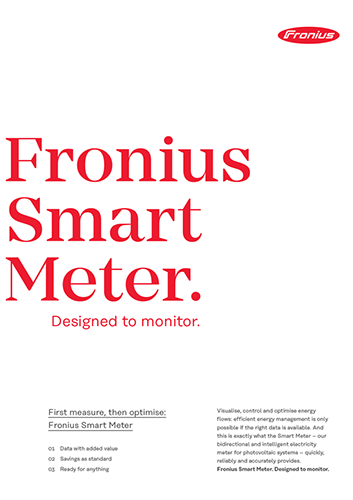

| Data Sheet |
|
