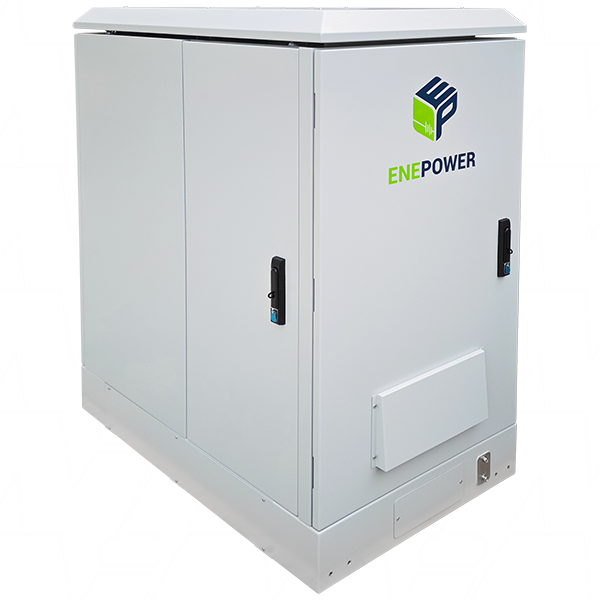

Enepower EBC25H-XD-ODFAN

EBC25H-XD-ODFAN Enepower All-in-one IP55 Rated Fan Cooled Dual Compartment Outdoor Battery Cabinet suitable for up to 5 x 4RU sized 19" battery modules (up to 25.6kWh, max 530mm deep) and houses power conversion equipment such as Victron, Deye, SMA, Selectronic, Goodwe, Sungrow and many more.

This Extra Deep (XD) model is capable of housing longer rack modules up to 530mm deep.

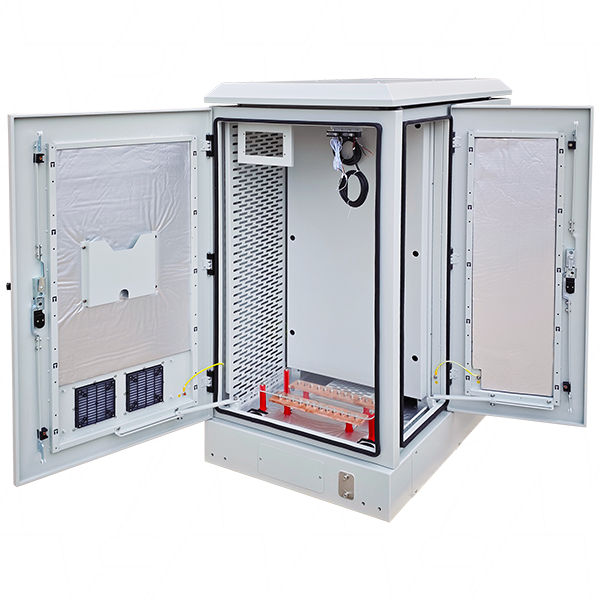

This innovative design features separate compartments to house the battery modules, and power conversion equipment, enabling easy access and simplified installations.

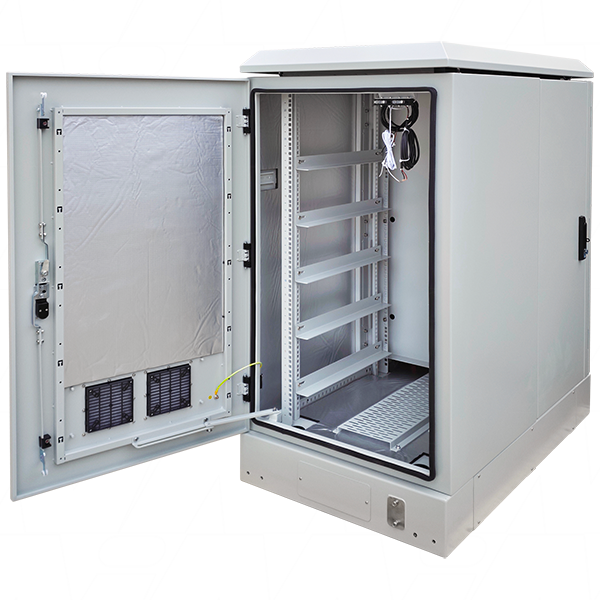

• The Battery compartment can house up to 5 x 4RU sized modules (6 x 3RU) and is cooled by twin DC48V Fans.

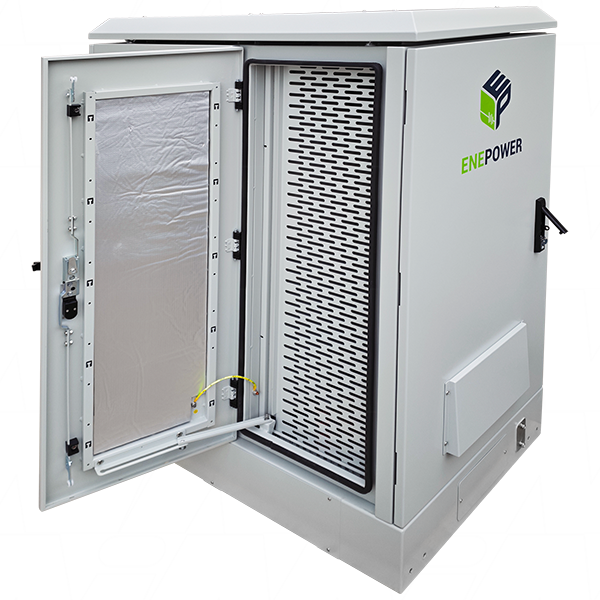

• The Power Connversion Equipment (PCE) compartment features a mounting plate, cable tray to conveniently house Inverters, Solar Controllers and Breakers

Battery Storage Capacity:

• 4RU Modules x 5
• 3RU Modules x 6

Cabinet Features:

• Heavy Duty Galvanised steel construction - Colour RAL7035
• 10mm thick NBR insulation
• IP55 ingress rating
• Multiple gasketed door access points via removable metal doors with three-point keyed-alike handle locks with staple for a padlock

  • Front/Rear Door stays @ 120°
  • Side Door stays @ 100°
  • 4 x Door Alarms
  • Battery Compartment x 1 door
  • PCE Compartment x 1 door + 2 side access doors
• Twin 48VDC Fans with Thermostat
• 5 x adjustable height L brackets/rails for 5 x 4RU module installation. Capacity to fit 6 x 3RU (extra set of L-brackets required, not included).

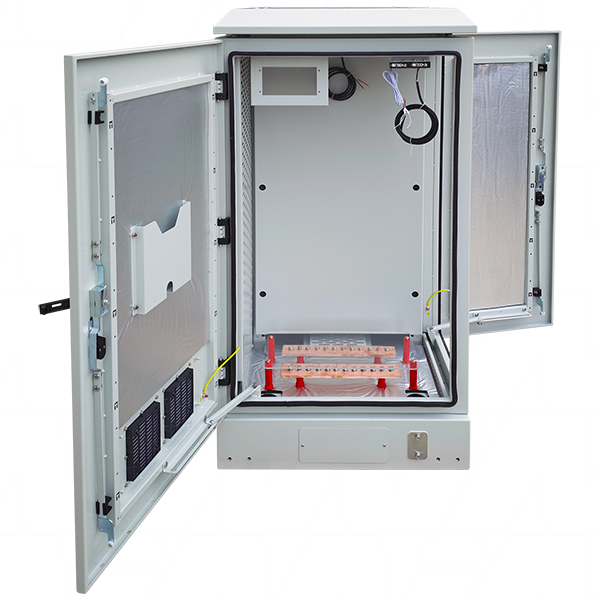

• Two 330mm x 60mm x 8mm Copper Busbars (1000 Amp Rating) with 8mm bolts for battery connection
• Acrylic Busbar Cover , Busbar insulators & stainless steel bolts
• Handy DC 48V internal LED lights, one on each side
• Document pocket
• Removable filters
• 4 x Floor mounting brackets
• 4 x Lifting Hooks to assist with cabinet placement - see Lifting Guidance Tech Note
• Addition of full height slotted mounting board. This can be utilised for mounting additional PCE and / or for cable management. It is interchangeable for use on either left- or right-hand side orientation.
• Extra cabinet depth to suit certain battery modules with up to 530mm depth.

Warranty: The EBC25H-XD-ODFAN comes with a standard warranty of Three (3) years.

Compatible Battery Modules - (See below for Cross Reference guide)

• 4RU size such as Drypower DP-12400-R, DP-24200-R, DP-51100-R, Pylontech US5000, Mictronix MPS-24-2.5, ZYC Simpo 5000
• 3RU size such as Pylontech US3000, Pylontech UP2500*
• 2RU Size such as Pylontech US2000

*Fans require a Victron Orion TR 24/48 DC-DC converter when using 24V Battery systems
