New Pylontech Models

Introducing 3 new battery models to the Pylontech stable



Pylontech has been at the forefront of battery innovation and development for over 10 years, delivering world class power solutions to over 80 countries.

Their commitment to continually develop sustainable solutions has led to this next generation of their massively popular All-Purpose Stand Alone category of Lead-acid replacement, small foot print modules.

These 3 new battery models to the Pylontech stable, are now available.

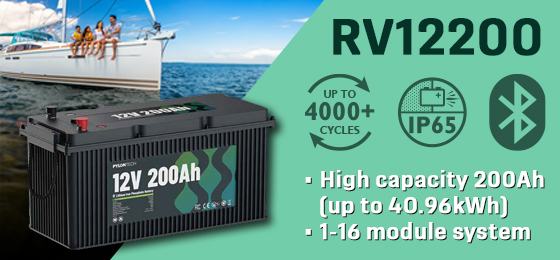

The RV12200 is a IP65 rated 200Ah module with in-built Bluetooth and scalable into battery systems of up to 40.96kWh.

Primarily designed for use in multi-module power systems for Off-grid or stand-alone Installations, the RV12200 is just as happy powering 4x4 dual battery setups, Caravan and marine fitments, or even truck cabins.

Front mounted terminals allow for easy connection and with Bluetooth monitoring via the Pylontech Auto App, you'll be able to easily monitor your battery status via your smart phone.

Capable of being used in systems of up to 16 modules in 1S16P, 2S8P or 4S4P configurations, The RV12200's array-aware BMS ensures all batteries are kept in balance to ultimately extend service life.

At just 21kg, and capable of over 4000 cycles to 80% Depth of Discharge, the RV12200 brings a big capacity solution, single footprint to the table.

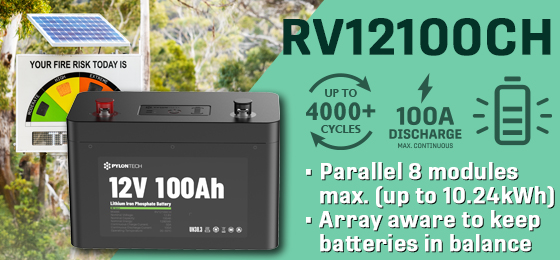

The RV12100CH is a 2nd generation iteration, refined to provide a versatile solution to 12V Systems used in stand-alone and off-gird installations, and internally housed RV and Caravans fitments.

Featuring the same top mounted Push-button SOC indicator and on/off switch, housed in an upgraded super strong IP20 rated metal casing, this new model benefits from the addition of an internal heating film to aid in battery charging when exposed to sub-zero temperatures (as found in remote off-grid installations).

When used in a multi-module setup, the Array Aware BMS ensure all batteries are kept in balance to maximise the run time and service life of the system.

Scalable to up to 8 in parallel, capable of over 4000 cycles to 80% Depth of discharge and weighing just 12kg, the RV12100CH is smart alternative to lead acid batteries.

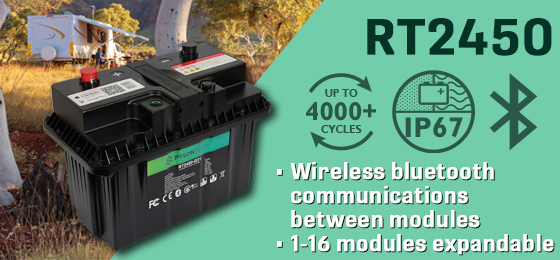

Built on the foundations of the extremely popular RT12100 12 volt series, this RT2450G31, 24V model has been developed to provide all the same features at the higher voltage. Developed to provide adaptability and scalability to systems in Marine, 4x4 & recreation vehicles, stand-alone infrastructure and off-grid deep cycle applications.

IP67 rated case means this is a great option for Marine applications, and with the advanced communications protocols, means you can see battery status from the Marine Glass Bridge (via Victron GX device integration).

Bluetooth capable and RS485/CAN integration, through the additional KIT-C1 communications box (*Coming Soon), the RT2450 can be used in systems of up to 16 modules in 1S16P and 2S8P configurations (max 20.48kWh).

Gone are the interlinking cables used on the RT12100G31 with the new RT2450G31 now wirelessly linking all batteries within the system in a "master/slave" scenario to ensure optimum performance.



CLICK HERE to view the Pylontech All Purpose Range or view the brochures below
