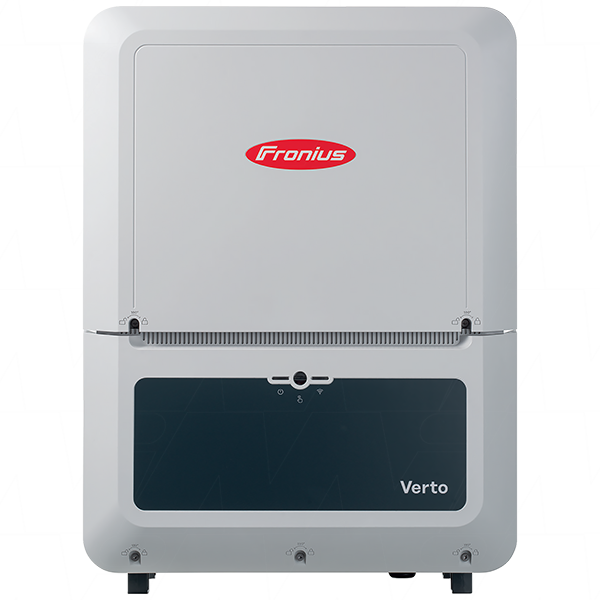

Fronius Verto 15.0 SPD 1+2

Fronius Verto 15.0 SPD 1+2

Fronius Verto 15.0 SPD 1+2 15kW 3 MPPT PV 3 Phase Inverter 4,210,420

Fronius Verto inverters are designed and developed for small businesses, apartment buildings, and agricultural applications, featuring wide input voltage range and innovative shading management. Whether you are installing a new PV system or expanding an existing one, the Fronius Verto allows you to create complex system designs with a variety of module orientations or slopes.



Fronius service and support

High flexibility in system planning

As flexible as your needs. With its innovative multi-MPPT concept featuring high current MPPTs and a wide input voltage range, the Fronius Verto always ensures maximum efficiency even for complex roof layouts and module configurations. Open interfaces allow the seamless integration of third-party components.

Fronius system

Maximum output, optimal yields

Optimal yields even with partial shading? The Dynamic Peak Manager minimises potential energy losses to an absolute minimum. The intelligent shading management maximises the performance of every PV system and is already standard in the Fronius Verto.

Fronius Integration

Built-in freedom

Developed with an open interface so that the integration and control of components from Fronius or third-party providers is particularly straightforward. An integrated and intelligent load management system efficiently uses surplus PV power by prioritising consumers such as heat pumps, pool pumps or wallboxes and controlling them as needed.

Fronius monitoring

Easy monitoring

With our free online tool Fronius Solar.web, accessible via smartphone, laptop, or PC, you always have an overview of your current energy yield and consumption. This way, you always know how much solar power your system is producing, have access to reports and analyses on energy sources and CO2 savings, and can also save additional costs with the smart features.

Fronius installation and protection

Comprehensive protection

The Fronius Verto comes equipped with integrated, replaceable AC and DC surge protection devices (SPDs), ensuring reliable protection, easy installation, and eliminating the need for additional components. Additionally, automatic arc fault detection (AFCI) provides enhanced safety by quickly identifying and extinguishing potential arcs, significantly reducing fire risk and ensuring your PV system remains safe and efficient.



Specifications:

1. Input Data

Range Verto
Single or three phase Three phase
Number of MPP trackers 3
DC input voltage range 150 - 1000V (Udc min - Udc max)
Rated input voltage 600V (Udc,r)
Feed-in start-up input voltage 150V (Udc start)
MPP voltage range 150 - 870V (Umpp min - Umpp max)
Max. usable DC output 13,000Wpeak (Pdc max, PV)
Max. PV generator output (MPPT) 19,500Wpeak (PPV max)
Max. PV generator output (Inverter) 22,500Wpeak (PPV max)

2. Output Data

AC rated power 15kW (Pac,r)
Max. output power 15kVA
Max. AC output current 22.7A at 380Vac / 21.7A at 400Vac / 19.7A at 440Vac / 18,2A at 480Vac
Grid connection 3~ (N)PE 380/220;
3~ (N)PE 400/230;
3~ (N)PE 440/254;
3~ (N)PE 480/275
Frequency 50/60 (45–65)Hz (frequency range fmin - fmax)

3. General Data

Degree of protection IP66
Night-time consumption <16 W
Cooling Active Cooling Technology
Installation Indoor and outdoor installation, 90°-10° tilt
Ambient temperature range -40°C - +60°C
Permitted humidity 0 - 100%
Max. altitude 3,000/4,000m (unrestricted/restricted voltage range)
Max. efficiency 98.53%
MPP adaptation efficiency > 99.9%



Want to connect a battery?

Verto Icon

This Inverter is available as a Hybrid model: Verto Plus 15.0 SPD 1+2



Related Products:

Smart Meter Icon Fronius Smart Meters - Click to view

Wattpilot Icon Fronius Wattpilot - Click to view


Selling Unit EACH
Model No Verto 15.0 SPD 1+2
Brand Fronius brand logo
Original Brand Fronius 4,210,420
Description Fronius Verto 15.0 SPD 1+2 15kW 3 MPPT PV 3 Phase Inverter 4,210,420
Application Residential and Light Commercial Solar, Off Grid Solar
Chemistry Lithium Iron Phosphate (LiFePO4)
Voltage 150 - 1000V
Size 15kW
Width 540mm
Height 730mm
Length / Breadth / Depth 278mm
Weight 35.2kg
Categories Power Products & Accessories
Inverter Chargers
PV Inverter Chargers
Three Phase PV
Fronius Verto
Fronius Verto
Data Sheet Datasheet PDF Thumbnail icon Datasheet PDF Thumbnail icon

Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account

Not appropriate for DIY

INSTALLATION TO AUSTRALIAN STANDARDS REQUIRED

  • This product requires installation to the appropriate Australian Standards
  • Various State legislations require a Licenced Electrician to install this item - Please consult your State Government websites for more information
  • QLD Legislation imposes Point of Sale signage regulations for this product
