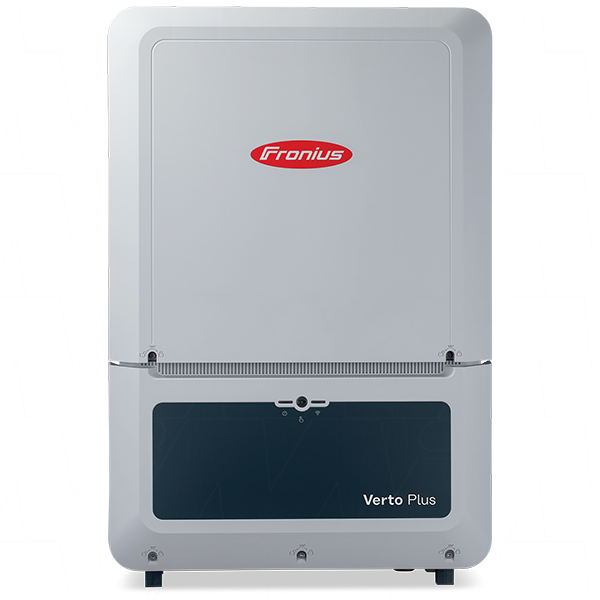

Fronius Verto Plus 15.0 SPD 1+2

Fronius Verto Plus 15.0 SPD 1+2

Fronius Verto 15.0 Plus SPD 1+2 15kW 3 MPPT Hybrid 3 Phase Inverter 4,210,450

Fronius Verto Plus inverters are designed and developed for small businesses, apartment buildings, and agricultural applications, featuring wide input voltage range and innovative shading management. Whether you are installing a new PV system or expanding an existing one, the Fronius Verto Plus allows you to create complex system designs with a variety of module orientations or slopes.



Fronius Reserva

Pairs perfectly with a Fronius Reserva Battery

The Fronius Reserva is a modular, high-voltage DC solar battery system designed to seamlessly integrate with Fronius GEN24 Plus and Verto Hybrid inverters for backup power and increased energy independence. A slim design, and scalability up to 63 kWh by stacking towers, with a 10-year performance warranty and European data security. Find out more.

Fronius battery backup

With full backup capability

When combined with a battery storage system, the Fronius Verto Plus provides a powerful, fully-fleched three-phase backup power supply* for the entire building. It is capable of handling even large loads such as heat pumps, cooling systems, fans or grinders. This makes the Fronius Verto Plus a reliable and safe solution for securing the power supply even in critical situations.

Fronius service and support

High flexibility in system planning

The Fronius Verto Plus offers maximum flexibility with three high-current MPP Trackers and a wide voltage range. This makes the inverter ideally suited to complex system designs and all your individual requirements.

Fronius system

Maximum output, optimal yields

Optimal yields even with partial shading? The Dynamic Peak Manager minimises potential energy losses to an absolute minimum. The intelligent shading management maximises the performance of every PV system and is already standard in the Fronius Verto.

Fronius Integration

Built-in freedom

Developed with an open interface so that the integration and control of components from Fronius or third-party providers is particularly straightforward. An integrated and intelligent load management system efficiently uses surplus PV power by prioritising consumers such as heat pumps, pool pumps or wallboxes and controlling them as needed.

Fronius monitoring

Easy monitoring

With our free online tool Fronius Solar.web, accessible via smartphone, laptop, or PC, you always have an overview of your current energy yield and consumption. This way, you always know how much solar power your system is producing, have access to reports and analyses on energy sources and CO2 savings, and can also save additional costs with the smart features.

With Fronius, you can also rest assured that your data is in the best hands. This is ensured by our certified information security system and our servers and cloud storage in Europe.

Fronius installation and protection

Comprehensive protection

The Fronius Verto Plus comes equipped with integrated, replaceable AC and DC surge protection devices (SPDs), ensuring reliable protection, easy installation, and eliminating the need for additional components. Additionally, automatic arc fault detection (AFCI) provides enhanced safety by quickly identifying and extinguishing potential arcs, significantly reducing fire risk and ensuring your PV system remains safe and efficient.



Specifications:

1. Input Data

Range Verto Plus
Single or three phase Three phase
Number of MPP trackers 3
DC input voltage range 150 - 1000V (Udc min - Udc max)
Rated input voltage 600V (Udc,r)
Feed-in start-up input voltage 150V (Udc start)
MPP voltage range 150 - 870V (Umpp min - Umpp max)
Max. usable DC power (MPPT) 13,000Wpeak
Max. usable DC power (Inverter) 22,500Wpeak
Max. PV generator output (MPPT) 20,000Wpeak
Max. PV generator output (Inverter) 22,500Wpeak

2. Output Data

AC rated power 15kW (Pac,r)
Max. output power 15kVA
Max. AC output current 22.7A at 380Vac / 21.7A at 400Vac
Grid connection 3~ (N)PE 380/220;
3~ (N)PE 400/230;
Frequency 50/60 (45–65)Hz (frequency range fmin - fmax)

3. Output Data Full Backup

Nominal Full Backup output power 15kVA
Peak output power 30kVA
Nominal Full Backup phase power 7000VA at 380Vac / 7300VA at 400Vac
Supported phase asymmetry Full
Backup
25.0A / 32.0A peak

4. Battery Connection

Max. nominal dis/charging
current
50A (Idc max)
DC input voltage range 150–700V (Udc min - Udc max)
Max. charging power 22,500W
Max. discharging power 15,000W
Max. charging power for AC
coupling
15,000W

5. General Data

Degree of protection IP66
Night-time consumption <16 W
Cooling Regulated air cooling
Installation Indoor and outdoor installation, 90°-10° tilt
Ambient temperature range -25°C - +60°C
Permitted humidity 0 - 100%
Max. altitude 3,000/4,000m (unrestricted/restricted voltage range)
Max. efficiency 98.03%
MPP adaptation efficiency > 99.9%



Only need a standard model?

Verto Icon

This Inverter is available as a PV model: Verto 15.0 SPD 1+2



Related Products:

Smart Meter Icon Fronius Smart Meters - Click to view


Selling Unit EACH
Model No Verto Plus 15.0 SPD 1+2
Brand Fronius brand logo
Original Brand Fronius 4,210,450
Description Fronius Verto 15.0 Plus SPD 1+2 15kW 3 MPPT Hybrid 3 Phase Inverter 4,210,450
Application Residential and Light Commercial Solar, Off Grid Solar
Chemistry Lithium Iron Phosphate (LiFePO4)
Voltage 150 - 1000V
Size 15kW
Width 574mm
Height 865mm
Length / Breadth / Depth 279mm
Weight 43kg
Categories Power Products & Accessories
Inverter Chargers
Hybrid Inverter Chargers
Three Phase Type
Fronius Verto
Fronius Verto Plus
CEC Approved Items
CEC Approved Inverters
Data Sheet Datasheet PDF Thumbnail icon Datasheet PDF Thumbnail icon

Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account

CEC approved check logo

This product appears on the Clean Energy Council list of compliant inverters & power conversion equipment (PCE)

View the full list here

Not appropriate for DIY

INSTALLATION TO AUSTRALIAN STANDARDS REQUIRED

  • This product requires installation to the appropriate Australian Standards
  • Various State legislations require a Licenced Electrician to install this item - Please consult your State Government websites for more information
  • QLD Legislation imposes Point of Sale signage regulations for this product
