Saft LS14500HT
LS14500HT High Temp AA size Saft Lithium 3.6V Thionyl Chloride Battery Bobbin Type
High energy density 3.6V in extreme environment AA-size bobbin cell ideally suited for 1 year applications.
- Huge Operating Temperature Range -40°C / +150°C
- High capacity & high energy most of the lifetime of the application
- Ability to perform safely and reliably up to 150°C with severe vibration/shock constraints
- Low self-discharge, compatible with a long operating life (less than 1% per year of storage, at +20°C, after 1 year)
- High and stable operating voltage
- Low magnetic signature
- Compliant with the vibrations and shocks test a 150°C defined in the Baker-Hughes environmental specification No. 27696 / Rev. E for downhole battery assemblies
- Compliant with intrinsic safety standard IEC 60079-11 part 10.5 and 7.4 (ATEX “IIA T4” classification, when tested at 60°C)
Alternate Products:
Standard Bobbin Type Model - LS14500
Supplied with Axial Leads/Pins - LS14500-CNA
Supplied with 20F Super Capacitor - LSP14500-20F
Supplied with 70F Super Capacitor - LSP14500-70F
| Selling Unit | EACH |
|---|---|
| Model No | LS14500HT |
| Brand |
|
| Description | LS14500HT High Temp AA size Saft Lithium 3.6V Thionyl Chloride Battery Bobbin Type |
| Application | Memory Back Up (MBU); Oil & Gas Monitoring, Measure While Drilling (MWD) |
| Chemistry | Lithium Thionyl Chloride |
| Voltage | 3.6V |
| Watt Hour | 7.92Wh |
| Nominal Capacity | 2.2Ah |
| Maximum Continuous Discharge Current | 100mA |
| Maximum Pulse Discharge Current | 150mA |
| Size | AA |
| Width | 14.62mm |
| Height | 50mm |
| Weight | 17g |
| Categories |
Portable Power Product Batteries Primary (Non-Rechargeable) Lithium Batteries Lithium Thionyl Chloride Batteries Lithium Thionyl Chloride Cylindrical Bobbin-MBU type Lithium Thionyl Chloride Batteries High Temperature Type Memory Back Up (MBU) Batteries 3.6V Lithium Thionyl Chloride - Bobbin Type ATEX & Intrinsic Safety |

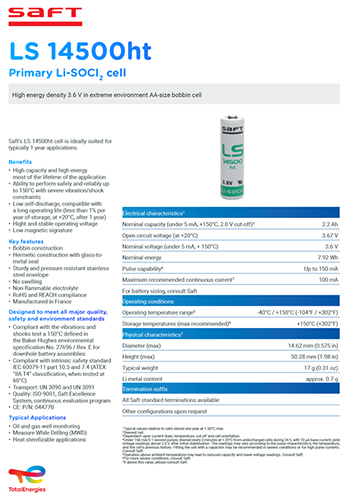

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
Saft’s broad offer includes the world’s only lithium cells independently certified and regularly audited, ensuring full and continued compliance with IEC / EN 60079-0 (Explosive atmospheres – Part 0: General requirements) and 60079-11 (Explosive atmospheres – Part 11: Equipment protection by intrinsic safety “i”) standards.
Speak to the Battery Engineers at Master Instruments to find out more about this standard.
Indent Item
PLEASE NOTE: This is an indent item (not stocked) and will need to be ordered in from the factory. Minimum order quantities (MOQ), Indent freight charges and lead times will apply. Please contact us for more information.
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
NON DG UN3090 LITHIUM METAL BATTERIES - Contains cells/batteries exempted from ADG 7.7 & IMDG Code 2020 using Special Provision 188.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
