Enepower EBC Cabinet Range

We are delighted to launch our new Enepower EBC battery cabinet range.

The smart cabinet designs provide the safe, efficient, and reliable housing of 19” rack-mount battery systems and associated power conversion equipment.

Featuring an IP55 rated heavy duty & insulated construction to protect against the elements, damage and interference, the modular designs allow for customisation in size, power input/output, and cooling requirements.

The range features 3 cabinet sizes capable of housing up to 40.92kWh of battery storage, with 2 of these available with either Twin Fans or Air Conditioners to keep your batteries cool in our harsh Australian climate.

All cabinets feature:

• IP55 Outdoor rated
• 10mm NBR (Nitrile Butadiene Rubber) insulation used throughout
• Multiple cable fixing points for easy wiring
• Powder coated, sturdy 2mm galvanised steel construction
• Adjustable brackets to accommodate different battery modules
• Keyed-alike and pad-lockable door handles, with 3-point locking mechanism

View the range here

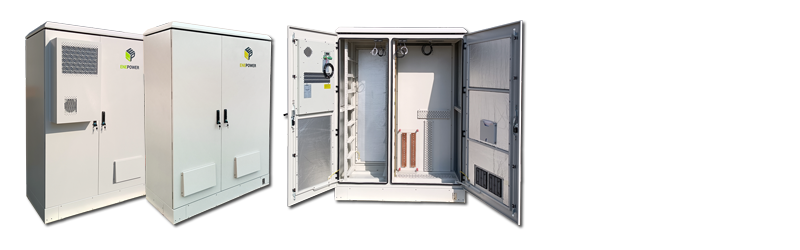

The EBC40H series is an all-in-one battery and PCE cabinet designed for system up to 40.92kWh.

This side-by-side cabinet is adaptable to house various system designs and component sizes. With innovative centre mullion dividing wall & rear access capability, the EBC40H series provides simple system setup to minimise time on site.

Adjustable height L brackets can accommodate up to 8 x 4RU or 10 x 3RU modules, with the  and associated PCE Equipment such as Inverters, MPPT's, Switchgear and more.

Models:

• EBC40H-ODAIR - 2 Bay All-in-one IP55 Rated A/C Cooled Outdoor Battery Cabinet for up to 8 x 4RU size 19" Modules, Inverter , MPPT & Circuit breakers
• EBC40H-ODFAN - 2 Bay All-in-one IP55 Rated FAN Cooled Outdoor Battery Cabinet for up to 8 x 4RU size 19" Modules, Inverter , MPPT & Circuit breakers

---

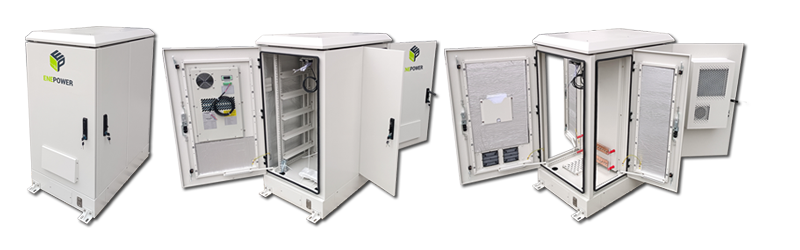

The EBC25H series offers an innovative front/back orientated design with battery in the front being A/C or fan cooled, and system components housed in a 3-door accessible section at the rear, and can accommodate up to 25.6kWh of compact battery storage.

Adjustable height L brackets can accommodate up to 5 x 4RU or 6 x 3RU modules in the front section, with the associated PCE Equipment such as Inverters, MPPT's, Switchgear secured in the rear.

Models:

• EBC25H-ODAIR - All-in-one IP55 Rated A/C Cooled Dual Compartment Outdoor Battery Cabinet for up to 5 x 4RU size 19" Modules, Inverter , MPPT & Circuit breakers
• EBC25H-ODFAN - All-in-one IP55 Rated FAN Cooled Dual Compartment Outdoor Battery Cabinet for up to 5 x 4RU size 19" Modules, Inverter , MPPT & Circuit breakers

---

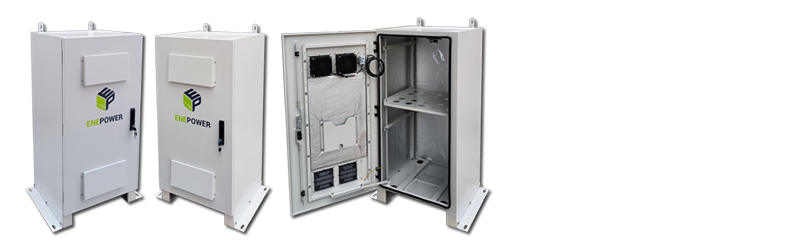

The EBC20V is a simple yet effective storage solution for up to 20.48kWh of battery storage. The vertical orientated module mounting allows for simple battery connections, whilst utilising the space efficiently.

The handy included battery tray also allows for not rack batteries and/or associated equipment to also be stored.

The EBC20V-ODFAN can accommodate up to 4 x 4RU or 6 x 3RU rack modules

Model: EBC20V-ODFAN - IP55 Outdoor Battery Cabinet for up to 4 x 4RU size 19" battery modules

---

Safely housing batteries and associated equipment is paramount in ensuring a long service life of any installation.

The Enepower EBC range has been designed to do just that with the IP55 rated heavy duty construction using powder-coated galvanised steel, coupled with robust door hinges and locking mechanisms, and effective convection methods to keep equipment cool in Australia’s harsh environment.

Adaptable to accommodate whatever brand of battery modules, inverters, MPPT’s and switchgear you use, the EBC range is worth considering.



Also check out our Indoor battery rack
